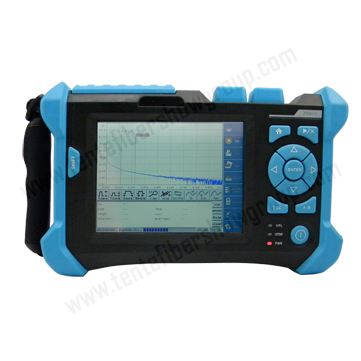

TOPSER620系列OTDR

时间：2015-6-3 22:50:08点击次数: 2894 来源：







Topser  Optical Time Domain Reflectometer Series



NO.

Type

Specification

1

TPR-620A

SV20A:1310/1550nm、32/30dB

2

TPR-620B

MV10A: 850/1300nm、21/19dB

3

TPR-620C

SV30A:1310/1490/1550nm、32/30/30dB

4

TPR-620D

SV20C:1310/1550nm、38/36dB

5

TPR-620E

SS24AF:1310/1550SMF+1625SMF,32/30/28dB

6

TPR-620F

SS24CF:1310/1550/1625nm、38/36/34dB

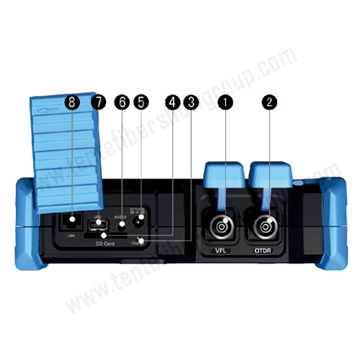

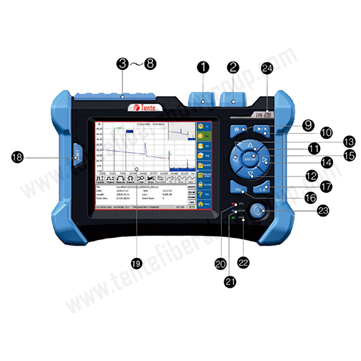

Optical interface 1/VFL

Optical interface 2/OTDR

Charging indicator

SD card interface

Power adapter interface

Earphone interface

USB interface

Ethernet interface

Home page button

Measurement/stop button

Move cursor upwards

Move cursor downwards

Move cursor to left

Move cursor to right

Fix button

Esc Button

A/B line switching button

Shift functional button

Touch screen

VFL indicator

OTDR measurement indicator

Power indicator

Power switch button

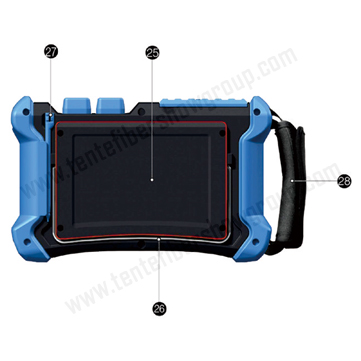

Model and name of product

Storage of rechargeable lithium battery

U bracket

Touch pen

Wrist belt



Appendix 1 Technical Parameters of TPR-620 OTDR



Technical Specifications1

Wavelength (nm)

850/1300

1310/1550

1310/1490/1550

1625

Dynamic range(dB)2

23/21

32/30

34/32

36/34

38/36

34/32/32

38/36/36

304

325

344

365

Pulse width(ns)

5、20、40、80、160、

320、640、1280

5、20、40、80、160、320、640、1280、2560、5120、10240、20480

Event blind zone (m)3

2m

2m

Attenuation blind zone (m)3

9m

9m

Linearity (dB/dB)

±0.05 dB/ dB

Loss threshold (dB)

0.05

Loss resolution ratio (dB)

0.01

Sampling resolution ratio (m)

0.125 to 8

Sampling point

32K

Distance uncertainty  (m)

±(1 m + 5×10-5×distance + sampling interval)

Distance scope (km)

0.3 to180

Typical real-time refreshing duration (s)

0.2

Memory capacity of trace

SD Card (2G), > 10000 pieces

Duration of measurement

Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable

General specification

Interface   category

Dimension(H×W×D)

150×235×66

Optical interface

FC/UPC (PC,and APC are selectable)

Weight

1.5kg

Data interface　

USB interface, SD card interface

Temperature

Running temperature -10℃ to 50℃



Memory temperature -40℃ to 70℃

Visible failure orientation VFL　

Relative humidity

0% to 95% (non condensation)

Wavelength　

650nm

Power supply

Lithium battery; continuing working duration ≥ 8 hours

Output power (dBm)　

≥-3

Warranty period

12 months

Maximum testing distance

3km


Remarks: 1.The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without   considering the uncertainty caused by optical fiber refractivity.

2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the   condition of 180km/20480ns/3min.

3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.

4. Dynamic range measured when there is filter.

5. Dynamic range measured when there is no filter.



















Remarks:

1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity.

2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min.

3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.

4. Dynamic range measured when there is filter.

5. Dynamic range measured when there is no filter.
