平面波导分路器

简单描述：

详细介绍：

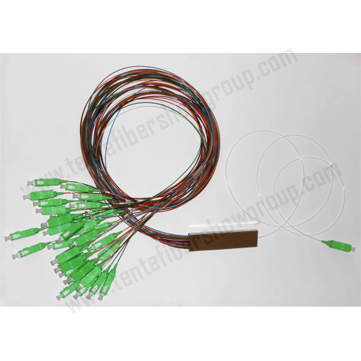

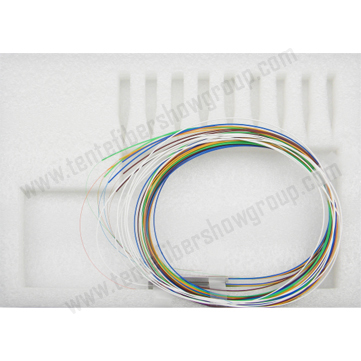

平面光波导分路器微分模块

37-2 平面光波导分路器微分模块副本.jpg

37-3 平面光波导分路器微分模块副本.jpg

37-1 平面光波导分路器微分模块副本.jpg

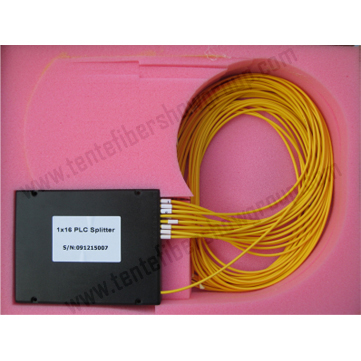

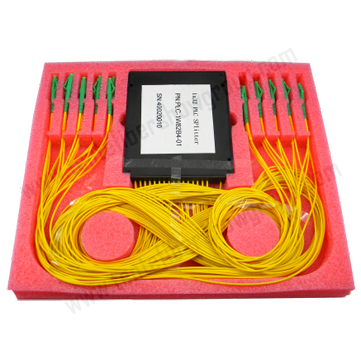

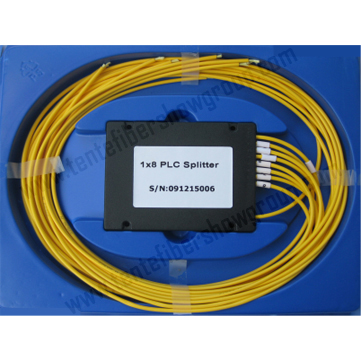

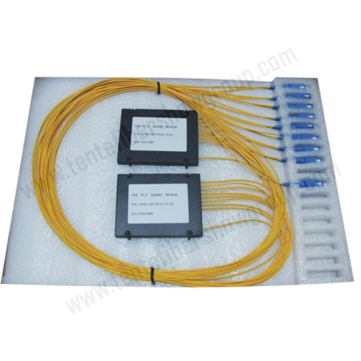

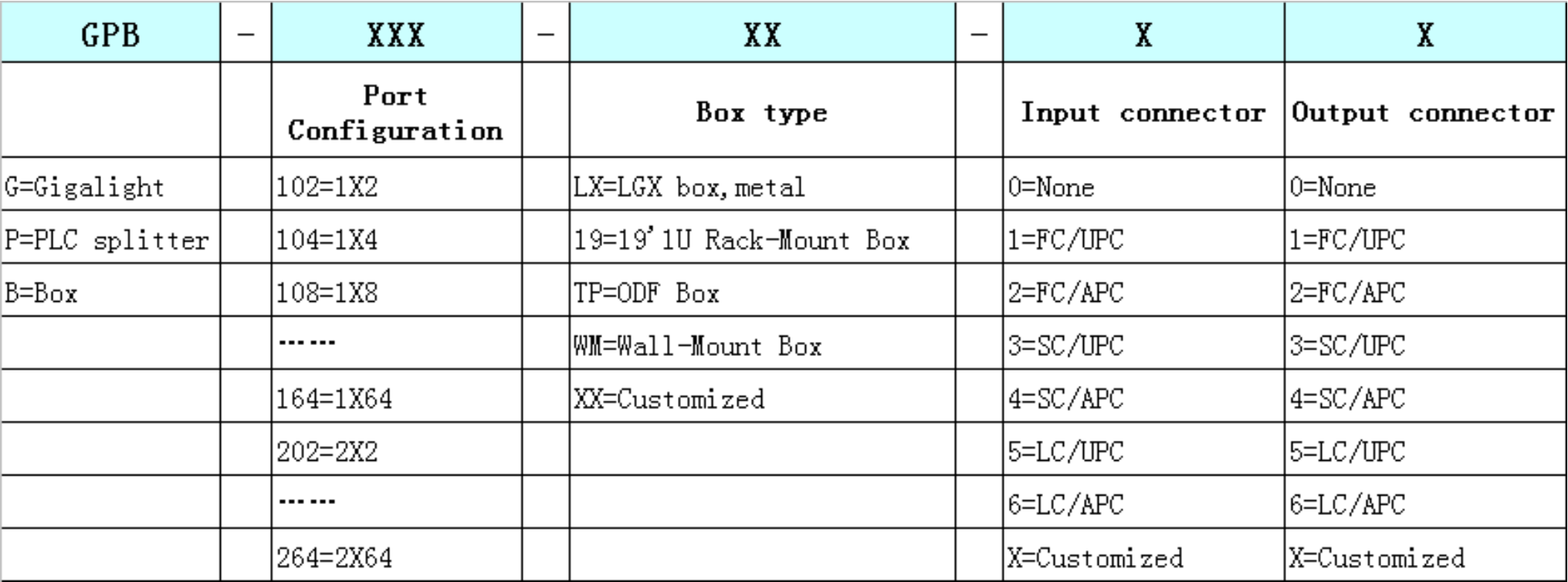

平面光波导分路器盒式模块

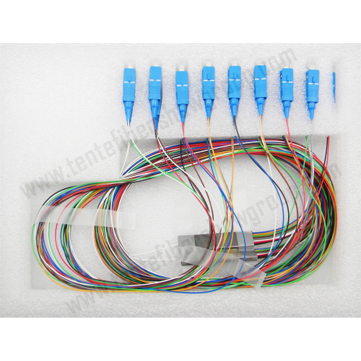

平面光波导型插片式光分路器

37-8 平面光波导型插片式光分路器副本.jpg

37-9 平面光波导型插片式光分路器副本.jpg

37-10 平面光波导型插片式光分路器副本.jpg

描述

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Blueray provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

应用

光纤到户系统

无源光网络PON

有线电视网络

其它光信号分路系统

特点

低插入损耗

低偏振相关损耗

高隔离度

紧凑精巧设计

良好的通道一致性

工作波长范围宽

高可靠性和稳定性

遵循

GR-1209-CORE

GR-1221-CORE

YD/T-1272Q

Q/CT-2295

RoHS

规格

表格1：1×N 平面光波导分路器

Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength (nm)	1260～1650
Fiber Type	G652D or G657A1 or customer specified
Insertion Loss (dB)（P/S Grade）	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss (dB) （P/S Grade）	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85

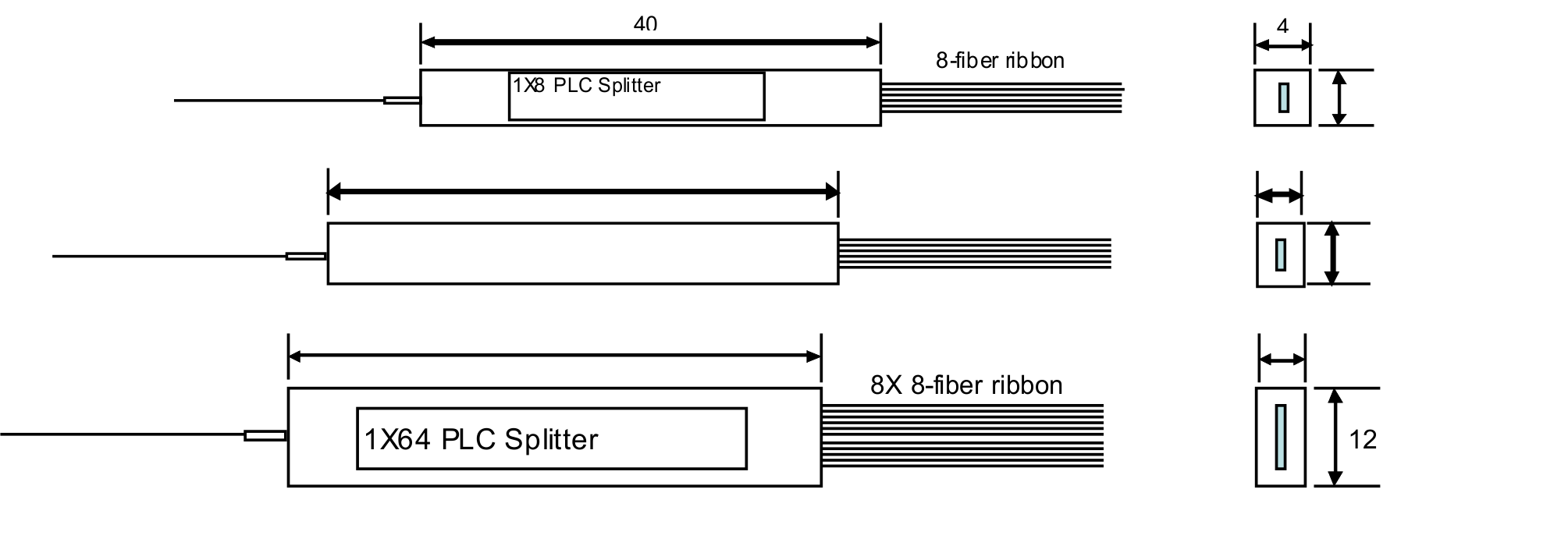

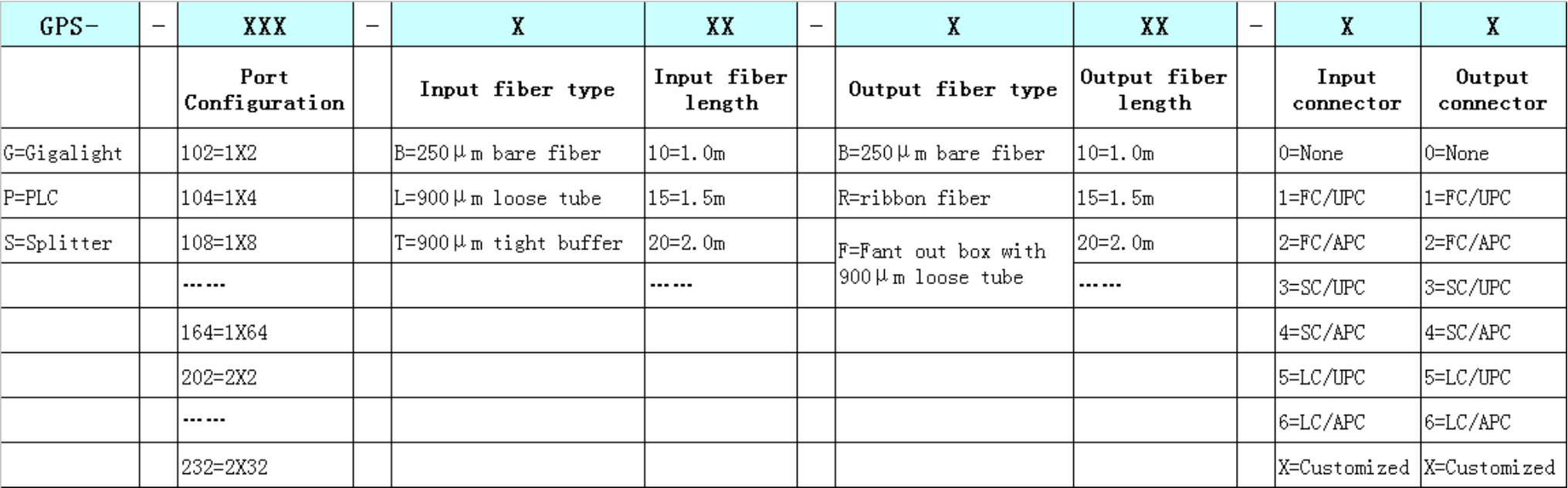

Device Dimension (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4	N/A

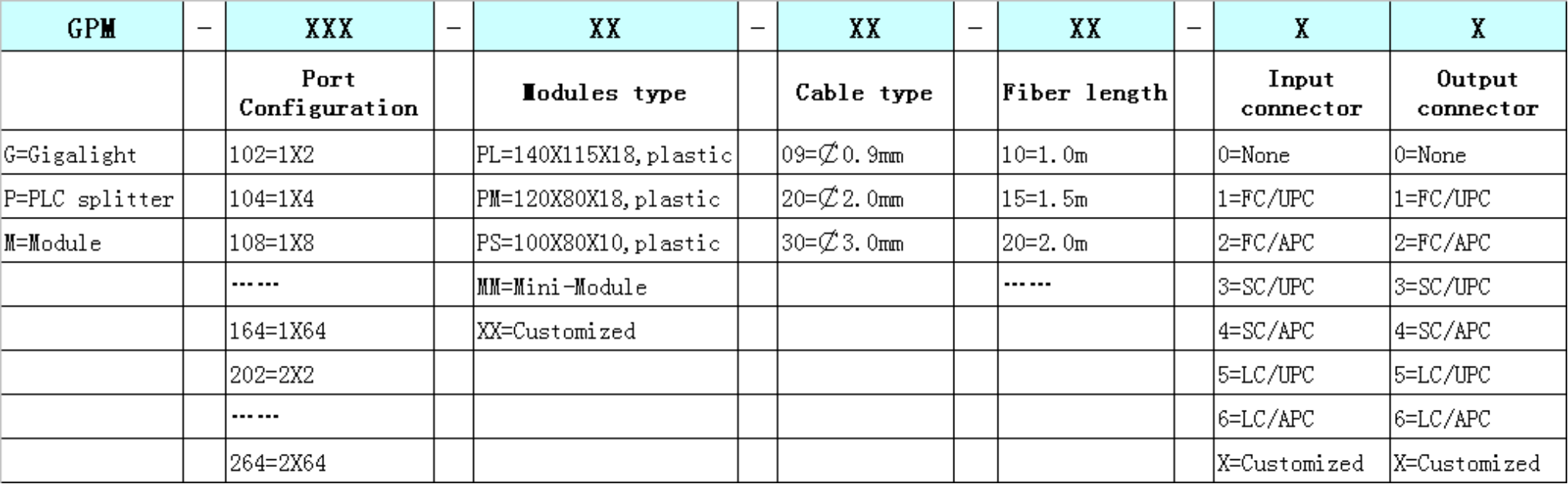

Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18	140×115×18

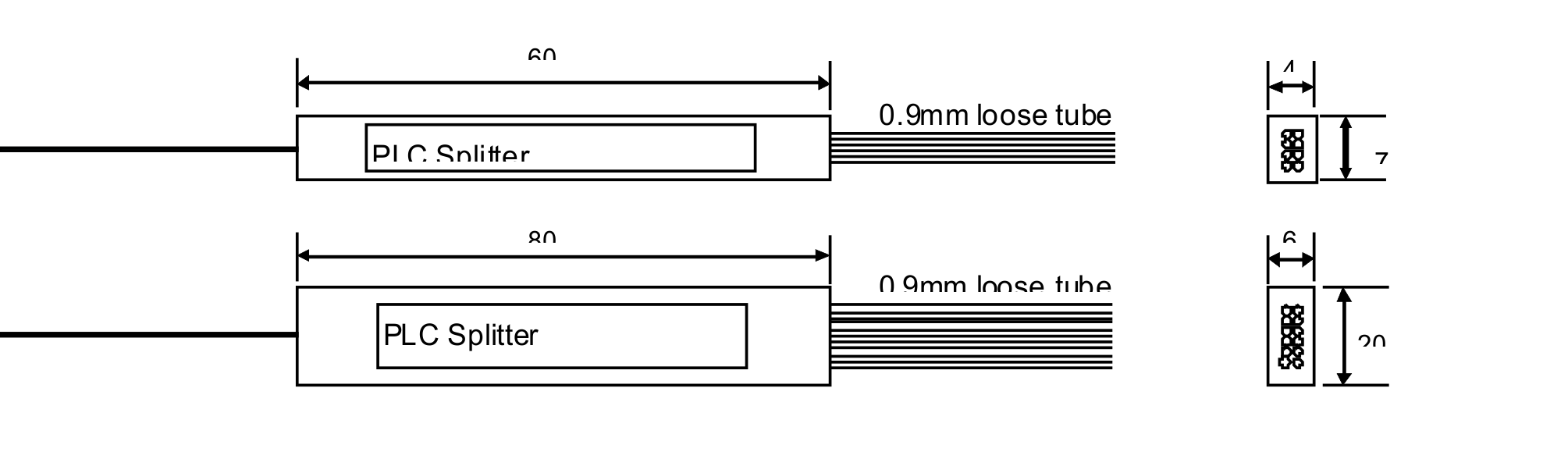

Mini-Module Dimension (mm)	50×7×4	50×7×4	50×7×4	60×12×4	80×20×6	100×40×6	N/A

表格2：2×N 平面光波导分路器

Parameters	2×2	2×4	2×8	2×16	2×32	2×64	2×128
Operating Wavelength (nm)	1260～1650
Fiber Type	G652D or G657A1 or customer specified
Insertion Loss (dB)（P/S Grade）	4	7.6	11	14.4	17.5	21	24.5
Loss Uniformity (dB)	0.6	1	1.2	1.5	1.8	2.2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.35	0.4	0.4
Return Loss (dB) （P/S Grade）	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.4	0.5	0.5	0.5	0.5	0.5
Temperature Stability (-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Device Dimension (mm)	40×4×4	50×4×4	50×4×4	50×7×4	60×7×4	N/A	N/A
Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18	140×115×18
Mini-Module Dimension (mm)	60×7×4	60×7×4	60×7×4	60×12×4	80×20×6	N/A	N/A
