简单描述：

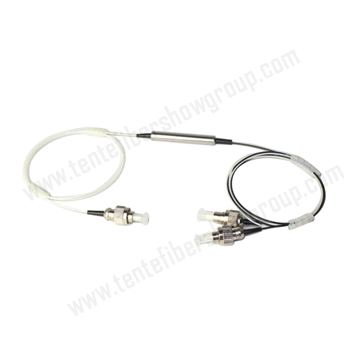

CWDM 波分复用器

详细介绍：

CWDM

 26 波分复用产品 CWDM 鹤壁册子 2015 副本.jpg

Applications

-  WDM System

-  MAN

-  CATV System



Features

-  Low Insertion Loss

-  Low PDL

-  High Isolation

-  Excellent Environment Reliability



Product Overview

CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-costm low power comsumption and small compact, it is widely used in metro aggregation and access layer to do transmission on a short time.



Performance

Type

CWDM

Parameters

Index

Channel No.

λ

2

3

4

5

6

7

8

9

Max insertion   loss

dB

0.8

1

1.4

1.8

2.2

2.6

3

3.4

Center   wavelength

nm

1310 . 1470 .   1490 . 1510 . 1530 . 1550 . 1570 . 1590 . 1610

Passband width

nm

±6.5

Passband   flatness

dB

≤0.5

Adjacent channel   isolation

dB

≥30

Non-adjacent   channel isolation

dB

≥45

Wavelength   thermal stability

nm/℃

<0.002

Insertion loss thermal stability

dB/℃

≤0.005

≤0.005

≤0.007

≤0.008

Return loss

dB

≥45

Polarization   mode dispersion

ps

≤0.10

≤0.10

≤0.15

≤0.15

PDL

dB

≤0.10

≤0.15

≤0.20

≤0.25

Directivity

dB

≥50

Max power

mW

500

Operating   temperature

℃

-10~+70

Storage   temperature

℃

-40~+85

Dimension

mm

100×80×10.5

Remarks

1.16 channels   WDM (wavelength from 1270nm-1610nm) can be ustomized
  2. Rack-mounted customization is available.






Dimension

27-1 100×80×10.5 mm.jpg27-2 120×80×18 mm.jpg

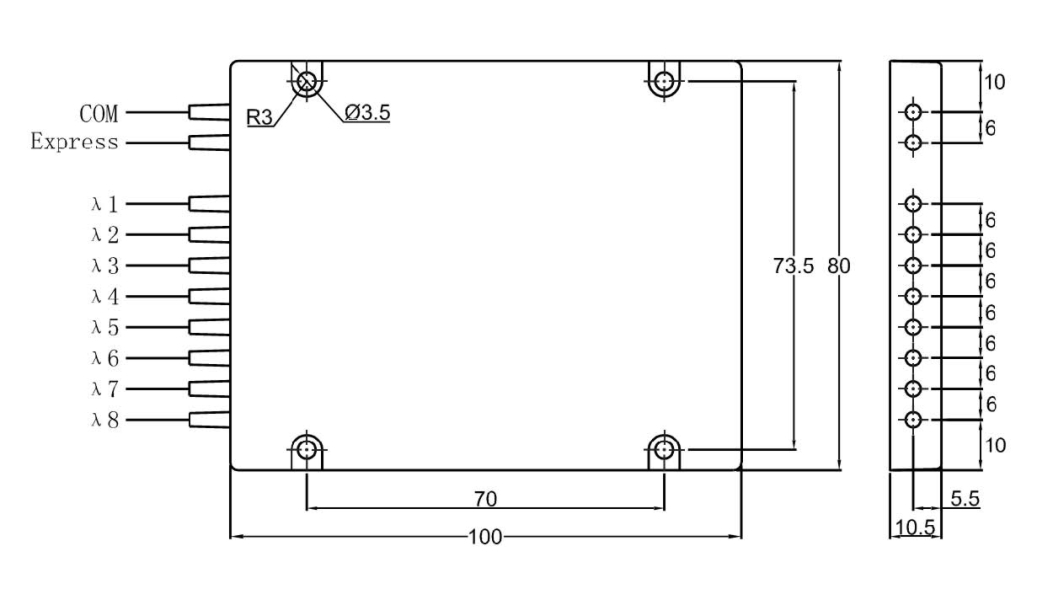

100×80×10.5 mm

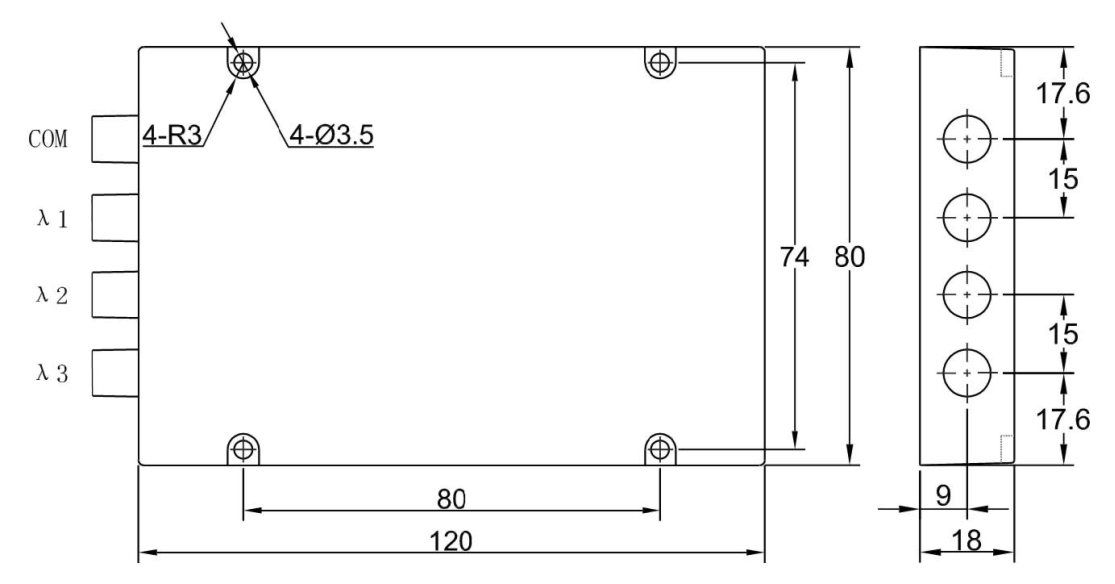

120×80×18 mm


27-3 140×115×18 mm.jpg27-4 Rack mounted Equipment.jpg

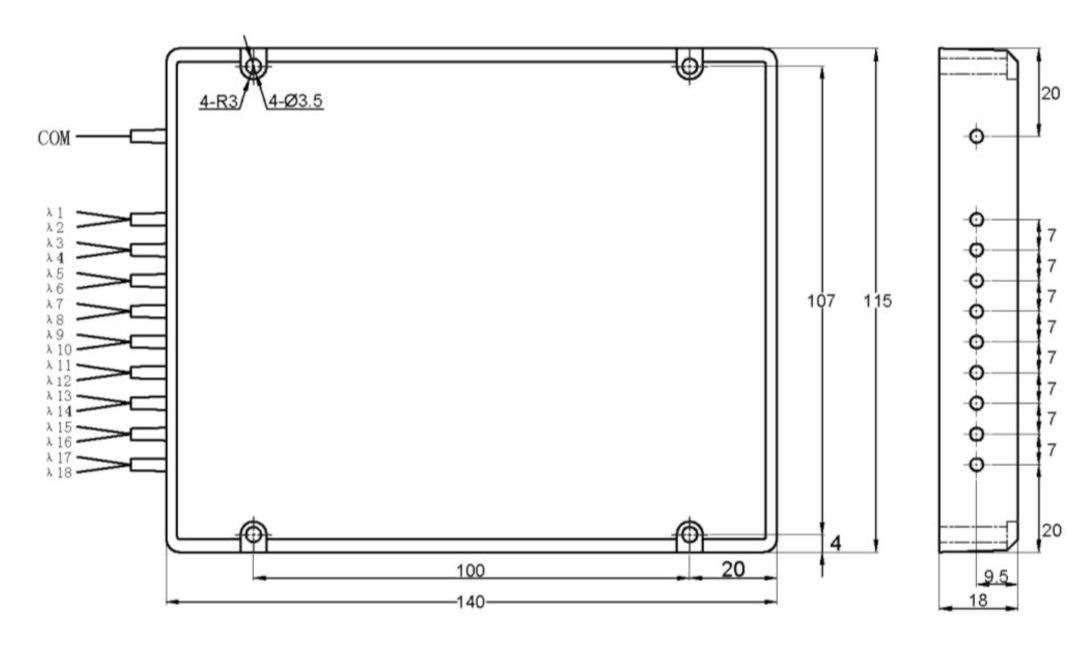

140×115×18 mm

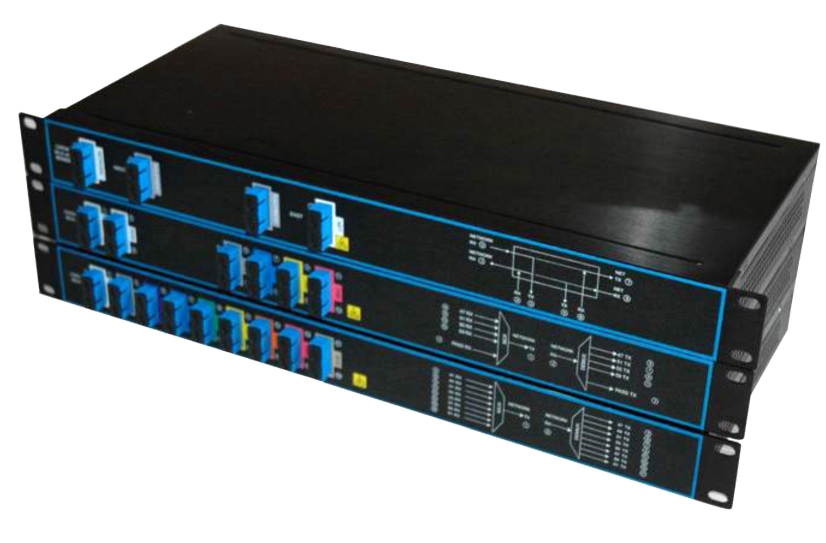

Rack-mounted Equipment




Ordering Information    CWDM-A-B-C-D-E-F-G

A

B

C

D

E

F

G

1×N

Wavelength

Package spec

Fiber Type

Fiber Diameter

Fiber Length

Connector

N=1
  N=2 …
  N=16

1270 nm
  1290 nm
  1310 nm …
  1570 nm
  1590 nm
  1610 nm

1: Φ5.5mm×34mm
  2: Φ5.5mm×35.4mm
  3:  90×20×10 mm
  4:  100×80×10.5 mm
  5:  120×80×18 mm
  6:  140×115×18 mm
  7:  1U×:Others

9: 9/125×:Others

25:250um
  90:900um
  20:2.0mm
  30: 3.0mm
  X: Others

05:0.5m
  10:1.0m
  15:1.5m
  X:Others

OO:None FP:
  FC/PC FA:
  FC/APC SP:
  SC/PC SA:
  SC/APC STP:
  ST/PC STA:
  ST/APC  LP:
   LC/PC LA:
  LC/APC
  X: Others
