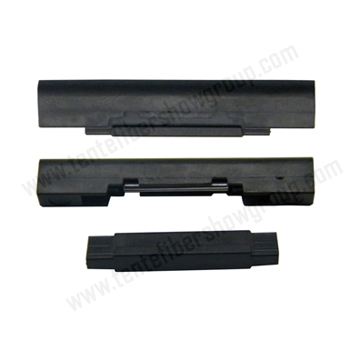

TPR-2325

Specifications

Telcodia GR-326-CORE

No epoxy,no polishing required

Re-usable design

High reliability,low loss

SPEC.Technical Parameters Insert  Loss

≤ 0.25dB(1310nm & 1550nm) Return Loss

≤-45dBFastening Strength of Bare Fiber

>5 N Fastening Strength of Bare Fiber Holder

>10 N Operating Temperature -40~+75°C

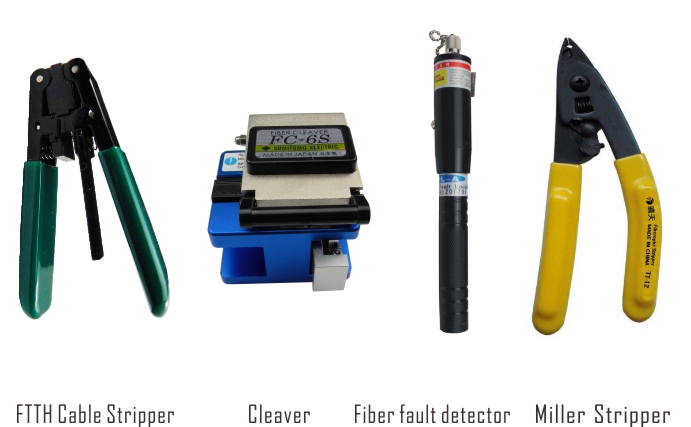

You need the following tools

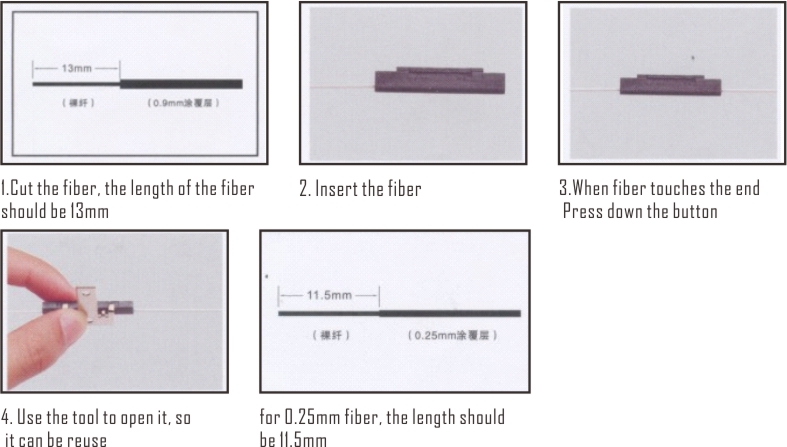

Steps
