简单描述：

FTTH 86 盒

详细介绍：

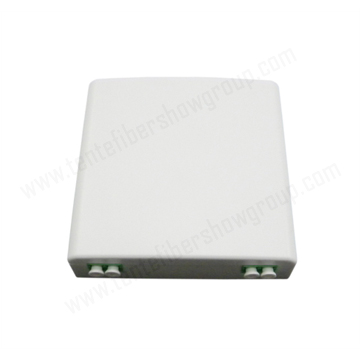

FTTH 86 Box

37-4 副本.jpg




TPR-1001

Performance

type

Technical   parameter

Scope

3.0*2.0mm   Leather string cable,indoor cable or five line

Fibre diameter

125um   (652&657)

cladding   diameter

250 um&900   um

Suitable mode

Singlemode&   multimode

Tensile strength

>50N

Operating   temperature

-40℃~+75℃

Adapter

SC&FC

Insertion loss

≤0.2dB (1310nm&1550nm)

outlet

Light port+light   port or light port + RJ45 port

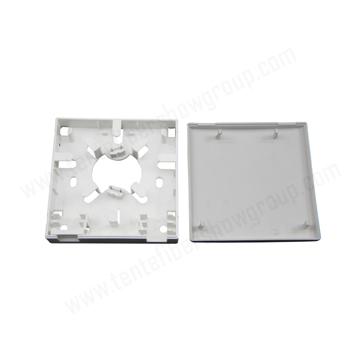

1.Housing ( Box and cover ) 1 Set.

2.SC Adaptor 2 Sets ( Maximum )

3.SC Pigtail 2 Sets
