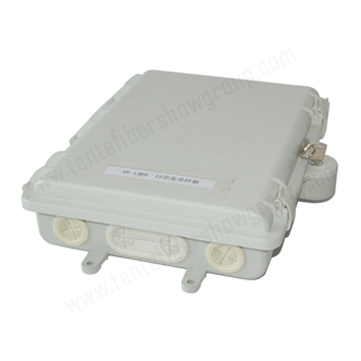

TT-YH-1 型 B 12 芯 分纤箱

Performance

1.Fire-retardant(availble), waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -35 °C - +60 °C natural environment.

4.Good sealing performance

5.IP 55

Material: PC outdoor/indoor

Size: Length 320mm* Width 250mm* Height 75mm

Maximum fiber capacity: 12-24 cores

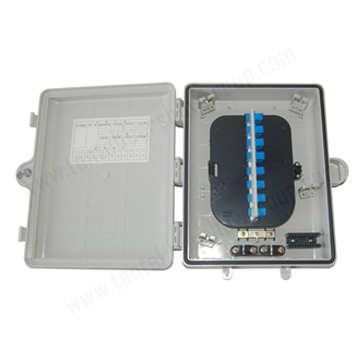

Adaptor Type: simplex SC

Sealing method: with key

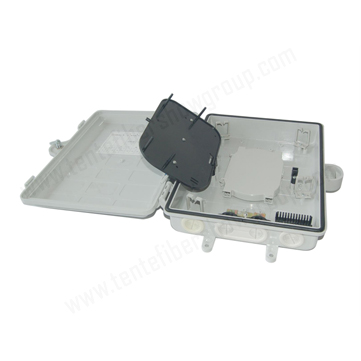

Splice tray: one pcs splice tray with 12 cores

Splice tray quantity: 1-2pieces

Packing: 0.12m³/10pcs

Weight:1.8 kg/pcs

Certificate: ISO T19001-2000idt ISO9001:2000 standard and an appointed product of China Telecom China Mobile
