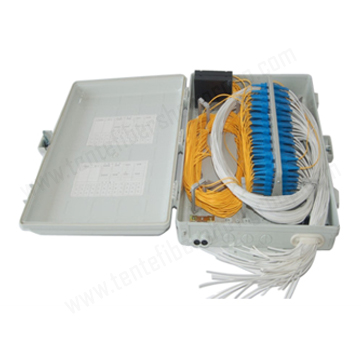

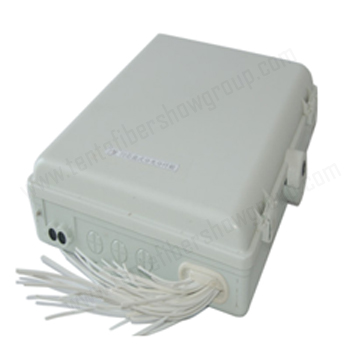

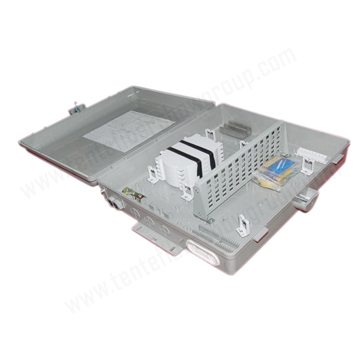

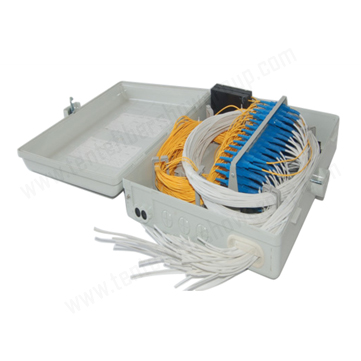

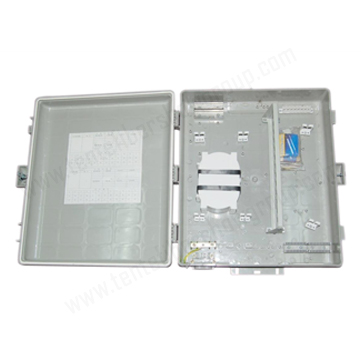

TT-YH-7 72 芯 1分64(盒子式) 分光分纤箱

Performance

1.Fire-retardant, waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -40 °C - +60 °C natural environment.

4.Good sealing performance

5.IP65

Material: PC ( outdoor/indoor use)

Size: Length 460mm* Width 395mm* Height 125mm

Maximum fiber capacity:?72 cores or 1:64 cores

Adaptors:Duplex SC adapters or simplex SC adapters

Splitter: 1piece 1:64 splitter

Cable:Drop cable, outdoor cable, standard indoor cable

Installation method:wall mounted,pole mounted.

Sealing method: with keys

Number of the tray:6 pcs, can open to 120°

Tray capacity: 12 cores

Packing:0.058m³/2pcs

 Weight: 3.05kg/1pcs
