Applicable

fibres SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS(ITU-T G.653)

NZDS (ITU-T G.655),Others

Fibre Count Single

Cladding diameter 80 to 150μm

Coating diameter 100 to 1000μm

Fibre cleaved length 5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900

Actual average splice

loss 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.

Splice time 7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode

Return loss 60dB or greater

Splicing modes 100 splicer modes are available

Splice loss estimate Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate.

Attenuation splice function Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator

Storage of splice result The last 2000 results to be stored in the internal memory.

Magnification X / Y (300X magnification), or both X and Y simultaneously (160X magnification)

Viewing method By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor Tension test 1.96 to 2.25N Operating condition 0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.

Tube heater Built-in auto-start tube heater with 10 heating modes and up to 20 for reference.

Tube heat time 13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available Applicable protection sleeve length 60mm, 40mm and a series of micro sleeves.

No. of splice/heating with battery 200 times of splicing and heat shrinking under with BTR-09

Power supply Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09 Terminals USB2.0 ( Mini-B) for data and video signal transfer to PC.

Wind protection Up to 15m/s wind velocity.

Dimensions 146(W) x 159(D) x 150(H) mm Including wind protector, monitor, and rubber protector.

Introduction

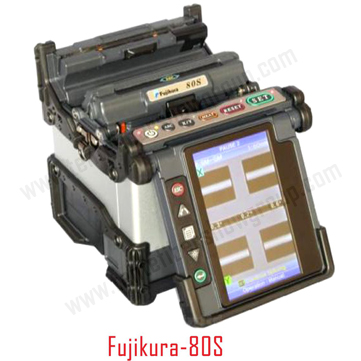

The 80S is core-to-core alignment single fiber splicer succeeding to 60S. In addition to ruggedized concept, which 60S created, the 80S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps,"innovative carrying-case design" for quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor,and "built-in operation manuals" in various languages.

Market is from backbone network installation to opto-electronics components production for quality splice.

Excluding rubber foot

Weight 2.5 kg, with ADC-18 AC adaptor 2.7 kg, with BTR-09 battery.

Electrode life 3000 arc-discharges.
