General Description

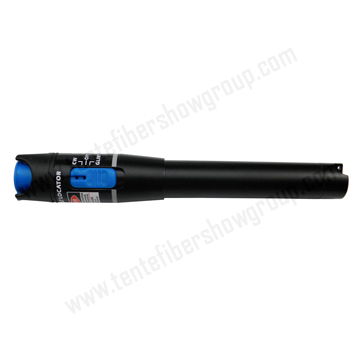

TPR0502 pen type VFL are compact but powerful Visual Fault Locator, with an

output power up to 30mw, could be used to locate sharp bends & breaks in jacked or bare

fiber within 30Km. It could also be used to identify the connectors in patch panels and

identify the fibers during splicing operation.

Bright red laser at 650nm

Pulsed and CW operation

50 hours of operation(1mW)

Standard AA alkaline batteries

Fast locate the broken point;

Rugged and weatherproof design

2.5mm universal connector

Different power for different distance

General Specifications

Size(H*W*D):175mm *26mm * 26mm

Weight: 80g

Storage Temperature:-20 -- +60 , < 90%RH

Operating Temperature:-10 -- +50 , < 90%RH

ACCESSORIES

TPR0502

Soft Bag*1

Quick Guide*1

Packing Box*1

SPECIFICATIONS

* The distance is tested by G.655, single mode, lab level fiber, loss<5dB/KM

** Standard connector is 2.5mm UPP, 1.25mm UPP will be customized and increase the cost
