简单描述：

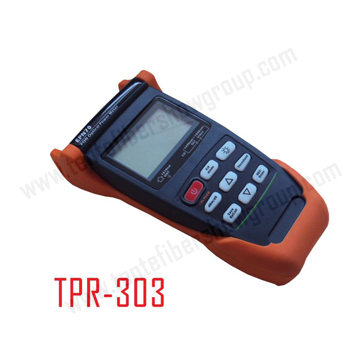

TPR-303 PON 光功率计
详细介绍：
Simultaneous measurement of 1310nm,1490nm, 1550nm power.
1310nm uplink burst signal test.
Can store eight records, they can always call.
Power detection, alert the user the battery status.
Multi-power supply automatic switching, and with automatic charge function.
Connected to the computer via USB, through the application software to achieve more control.
Main Characteristic
Measurement of 1310nm(upstream) | |||
Pass band | 1260 ~ 1360 nm | Isolation of 1490nm bands | >40dB |
Measurement rang | +10dBm~-35dBm | Optical connector inter changeable adapter | SC/PC |
Max. permitted input level | +15dBm | Intrinsic uncertainty | 0.5dB |
Isolation of 1490/1550nm bands Resolving Po | >40dB | Linearity | 0.1dB |
Measurement of 1490nm(upstream) | Pass through insertion loss Temperature | <1.5dB | |
Pass band | 1480 ~ 1550 nm | Threshold sets | Yes |
Measurement rang | +10dBm~-50dBm | Data memory | Yes |
Max. permitted input level | +15dBm | Extension interface | USB |
Isolation of 1310nm bands | >40dB | Dry batteries | Size AA*3 |
Isolation of 1550nm bands | >40dB | Operating time from dry batteries | >30H |
Measurement of 1550nm(upstream) | Normal range of use | -10℃~+60℃ | |
Pass band | 1530 ~ 1570 nm | Storage and transport | -20℃~+70℃ |
Measurement rang | +25dBm~-45dBm | Relative humidity | <90% RH |
Max. permitted input level | +30dBm | Size | 190mm*92mm*50mm |
Isolation of 1310nm bands | >40dB | Weight | 300g |
Standard | Warranty card | 1 |
Portable package | 1 | |
User’s manual | 1 | |
Alkaline cell | 1 | |
Optional | Ni-MH cell | 1 |
Power adapter | 1 | |
Application software | 1 |
