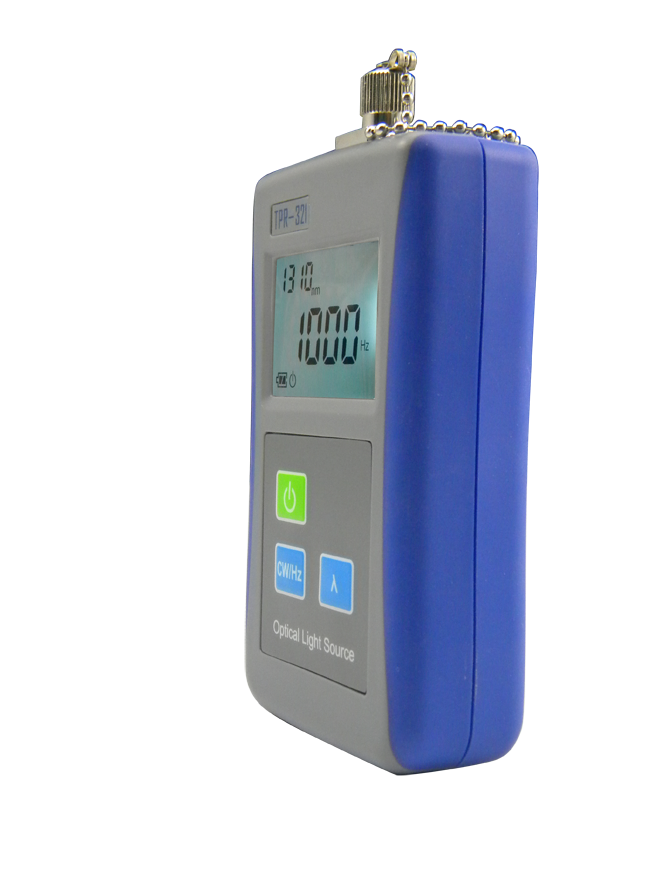

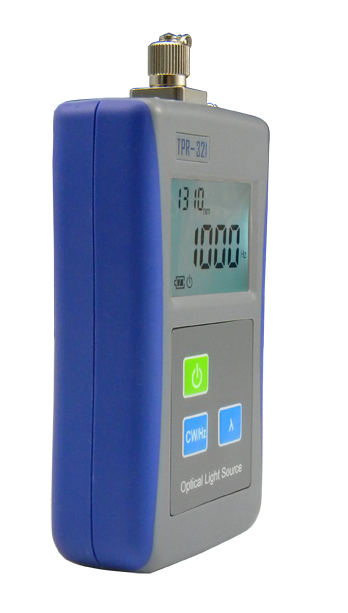

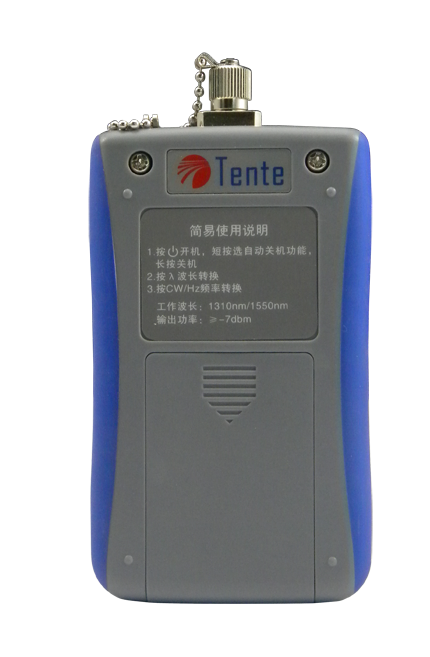

TPR321 Optical Light Source

Time:2015-5-25 15:44:44Click Count:2690 Source:

Description

 TPR321 series of high stability of the laser light source is a self-developed instrument, Which features advanced control technology , high output, ultra low-power operation. It can work at 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm、650nm,  single wavelength 、dual-wavelength or tri -wavelength. It can export a variety of modulation frequency (CW, 270HZ, 1KHZ, 2KHZ). It is widely used in optical communication, optical measurement, optical fiber sensing, and so on.



Features:

1. Good stability in output power

2. Optional auto-shutdown

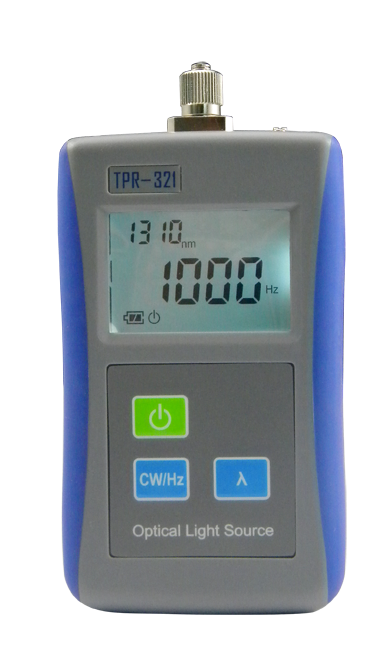

3. Large LCD display and backlight

4. Battery power display



Application

1. Maintenance Telecom

2. Maintenance CATV

3. Test Lab of Fiber Optic

4. Optical fiber sensors







Specifications

Type	TPR321
Emitter Type	FP-LD
Wavelength（nm）	650、850、1300、1310、1490、1550、1625（1-3 wave）

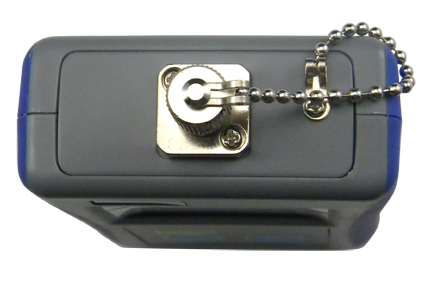

Optical Connector	FC（SC/ST ca1310n be optional）
Output Power(dBm)	≥ 3m w @ 650nm; ≥ -7dBm @ 850/1300nm ≥ -7,-3,0dBm @   /1490/1550/1625nm
Output Stability(dB)	±0.04@20℃@15min
Modulation Frequencies	CW,2Hz@650nm;CW,270Hz,1KHz,2KHz@others
Fiber Type	SM、MM
Power Supply	AAA 1.5V(3pcs batteries)
working time(h)	40hours
Operating Temperature(℃)	-10～+50
Storage Temperature(℃)	-20～+70
Dimension(mm)	125*65*29mm
Weight(g)	160

 Ordering Information:

Standard Accessories:

FC/PC,SC/PC,ST/PC connectors , Manual, Carrying Bag, and Battery.

 Optional Accessories:

APC for FC/ST/SC Connectors ,AC/DC Adapter

 Optional adapters:

FC/PC male -ST/APC   female Adapter	FC/PC male -SC/APC   female Adapter
FC/PC male -FC/APC   female Adapter	FC/PC male -LC/PC   female Adapter
