Tente Fiber Fusion Splicer

Time:2015-5-25 15:23:45Click Count:11026 Source:



Main Features

5 inches high Resolution colorful LCD display, image can be turned according to position.

Average splice time: 10 second

Average tube-heat time: 40 second

Lithium battery: 8AH and up to 180 times of continuous splice and heat after fully charged

Simultaneous X and Y views with 200 times magnification

Cutting-edge technology for image processing

New developed technology providing strong wind and dust resistance

Working mode：Auto & Manual &Full-Auto

USB Port

Storing 6,000 groups of latest splice results.

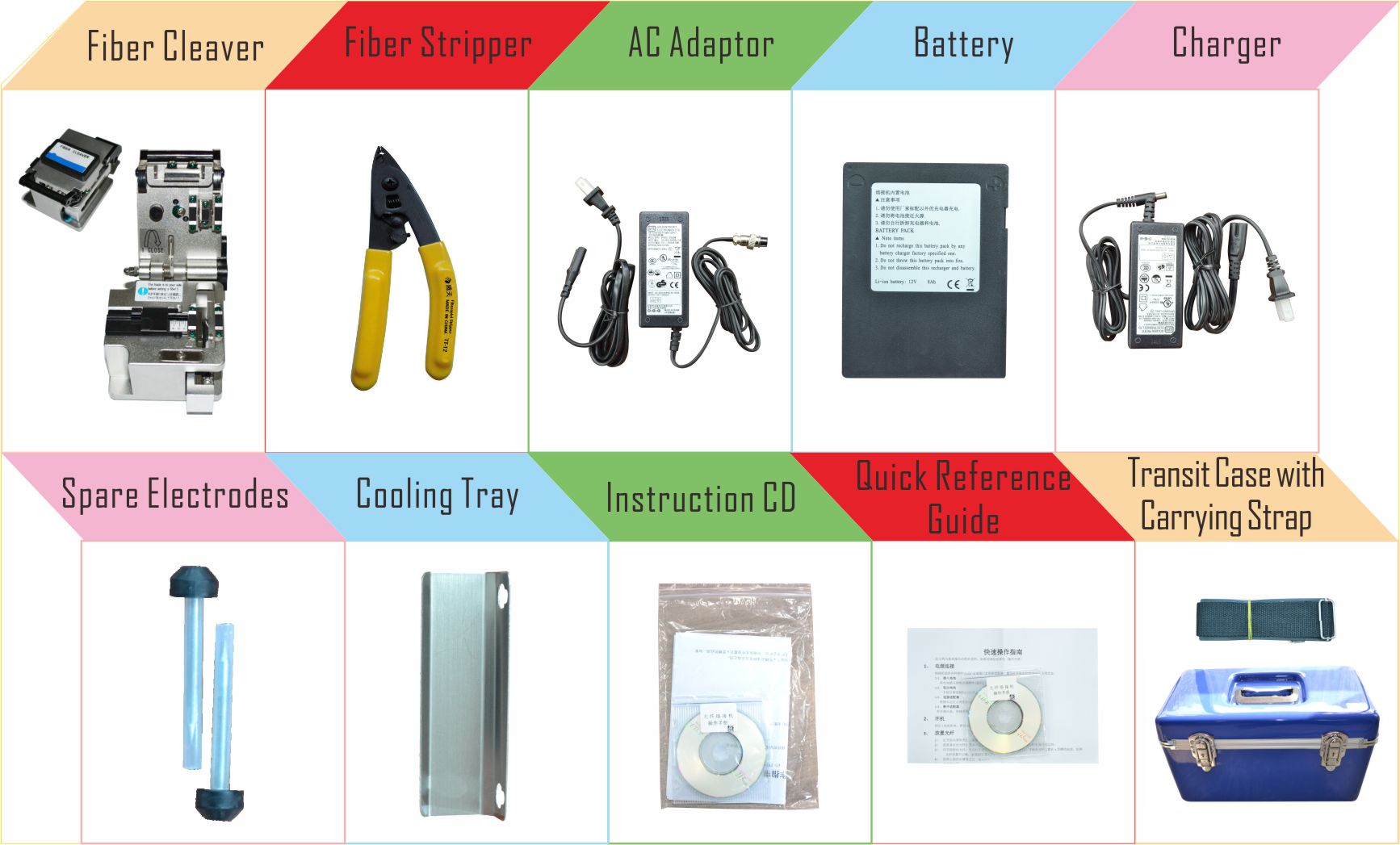

Standard Package

No.	Item	Quantity		No.	Item	Quantity
1	Machine   (TPR-801)	1		7	Spare Electrodes	1
2	Fiber Cleaver(601-1071)	1		8	Cooling Tray	1
3	Fiber Stripper	1		9	Instruction CD	1
4	AC   Adaptor(602-120500D)	1		10	Quick Reference   Guide	1
5	Battery(603-1072)	1		11	Transit Case   with Carrying Strap	1
