Good news: New product,High-end cable released from Tente Optical communication co.,ltd

Time:2018-10-30 9:21:41Click Count:1717 Source:

The high-end optical cable manufacturer: shenzhen Tente haoyu optical communications co., LTD. has Successfully developed the 24-core branch wiring optical cable. The company aims at high-quality production and gained several Letter Patents for different products.

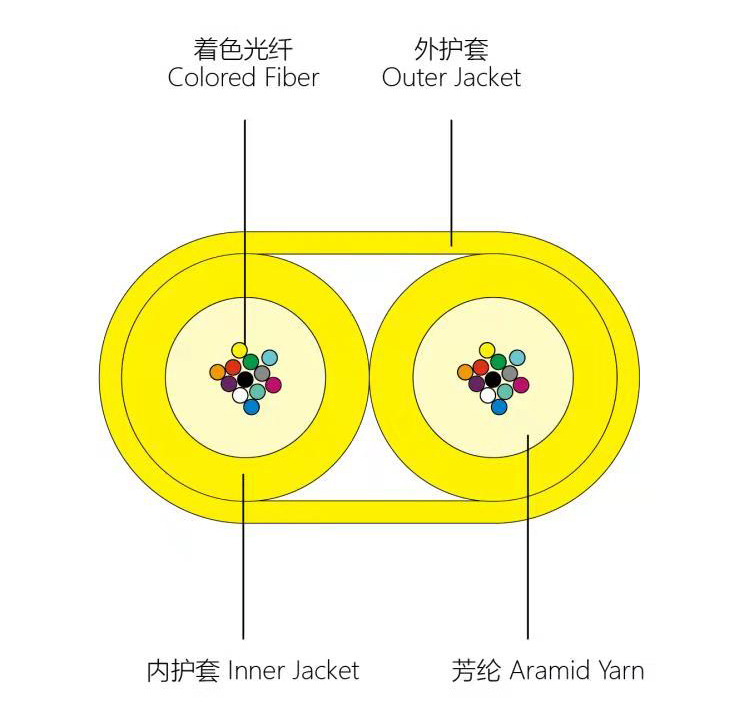

The design allows each unit to be laid to different positions.High strength, good bending performance, no filling compound, easy to operate and splice. Options available for singlemode or multimode to facilitate use under special circumstances. With tight structure, light weight, small dimension and high tensile strength, it facilitates flexible installation.

It can reduce cost for indoor and in-building cabling. Recommended for installation in comparatively small space and place with small bending radius. Used as pigtail of communication equipment and cable for patchcord and connectors.

Temperature range（℃）		-20℃～+70℃
Nominal Weight（g/m)		30.0
Out Diameter（mm)		4.2±0.3mm×7.6mm±0.4mm
Min.Bending Radius（mm)	Dynamic （mm)	20H
	Static （mm)	10H
Max.Tension （mm)	Short- term （N）	300
	Long- term （N）	160
Max.Crushing  Resistance（N/100mm2）		1000
