Printing Method

Direct Thermal & Thermal   Transfer

Software

PPCS Windows API
  Windows driver(Win95/98/MEXP/NT/2000/2003/Vista)
  PosLabel priting software with ODBC Database function

Priting resolution

203 dpi(8 dots/mm)

Bar Code Types

1D Baarcode:Code 39,Code 93,   Code 128/subset A,B,C,Codabar,
  Interleave 2 of 5,UPC A/E 2 and 5 add-on, EAN-13/8/128,UCC-128, 2D   Barcode:MaxiCode, PDF417, Data Matrix, QR, etc

Max printing speed

4 ips(101.6mm/s)

Media sensor

Reflective(Adjustable)/Transmissive

Max printing width

4.25*(108mm)

Interfaces

RS-232 serial,USB,   Centronics

Max printing length

315*(8000mm)

Print power rating

24 VDC, 2.0A

Memory

2MB FLASH ROM, 4MB SDRAW

Weight

7.72 lbs(3.5 kgs)

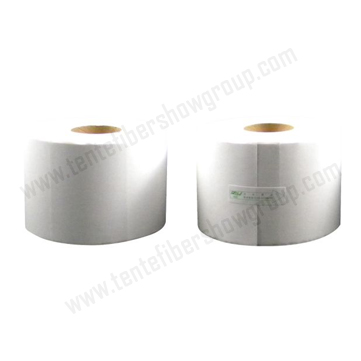

Media

Roll-feed, die-cut,   continuous, fan-fold, tags
  tickets in plain paper or thermal paper
  Width:4.3*(110mm)max,0.98*(25mm)min
  Supply roll: OD 6*(152mm)max,ID 1*(25.4mm)core

Dimensions

W 10.08*D 12.95*H 7.87(W256*D329*H200   mm)

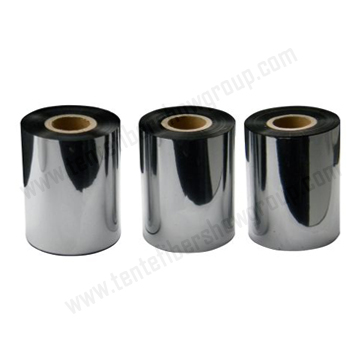

Ribbon

Wax, Wax/Resin, Resin
  Ribbon roll:OD 2.75*(70mm)max,ID 1*(25.4MM)core
  Max width:110mm;Max lengh:300M

Operating Environment

Temperature:32°F- +104°F（0°C-40°)
  Relative humidity：5%-85% non condensing

Fonts

Five built-in ASCll Fonts
  Optional multiple languagefonts

Optional Items

Rotary Cutter Kit,External   Rewinder,External Media Stand,
  Internal 100/10M Ethernet Interface Card
