Description:

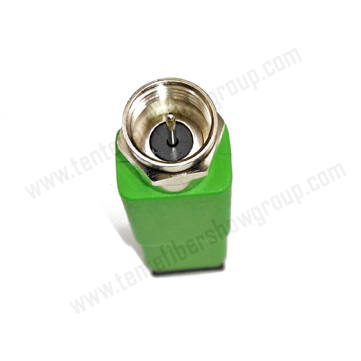

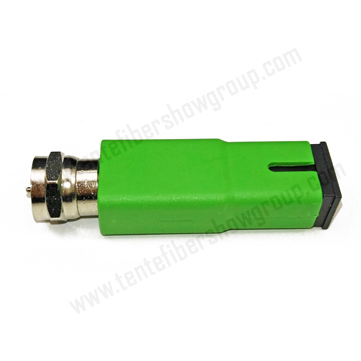

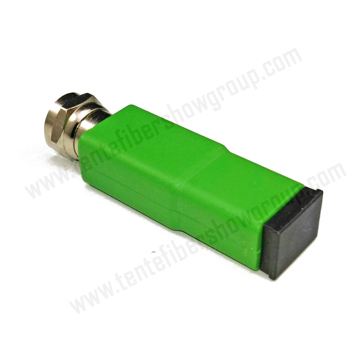

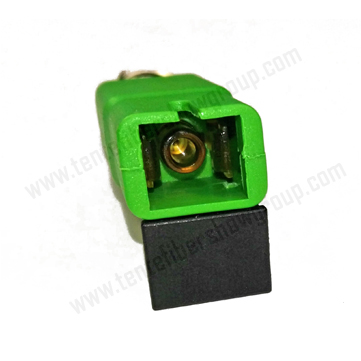

FTB CATV Media Converter
Details:
FTB CATV Media Converter is designed for cable TV optical transmission of indoor optical receiving, with high reliability of the Mean time between failures (MTBF) ≥ 5x105 hours.
Specifications:
No | Item | Unit | Performance parameters | |
1 | Received light wavelength | nm | 1100-1600 | |
2 | input optical power | dBm | 0~-15 | |
3 | RF bandwidth | MHz | 40~860/1000 | |
4 | in-band flatness | dB | ±0.75~±1.5 | |
5 | Impedance | Ω | 75 | |
6 | RF output level (Test condition: optical input level: 80db, MER: 38, BER: 1.0-E-9) | dBuV | 68dbuv(@0dBm) | MER:37,BER:1.0E-9 |
56dbuv(@-6dBm) | MER:36,BER:1.0E-9 | |||
48dbuv(@-10dBm) | MER:31,BER:1.0E-7 | |||
45dbuv(@-12dBm) | MER:27,BER:2.7E-7 | |||
7 | Light reflection loss | dB | >45dB | |
8 | CNR | dB | >=51dB | |
9 | CTB | dBc | >=65dB | |
10 | CSO | dBc | >=62dB | |
11 | Sensitivity | dB | -17 | |
12 | Working temperature | ℃ | -20～+60 | |
13 | Operating humidity No condensation | 10%～90% | ||
14 | Fiber Interface | SC/APC or Use defines | ||
15 | RF Output Interface Form | Metric or Imperial | ||
Note:
Products from the purchase date, with the warranty for 13 months, (lightning, debris flow, man-made and other natural disasters caused by damage, not covered by the warranty).
If the product is damaged in six months, for the maintenance, the buyer and seller will bear their own shipping costs, more than six months of the buyer bear the return shipping.
