Description:

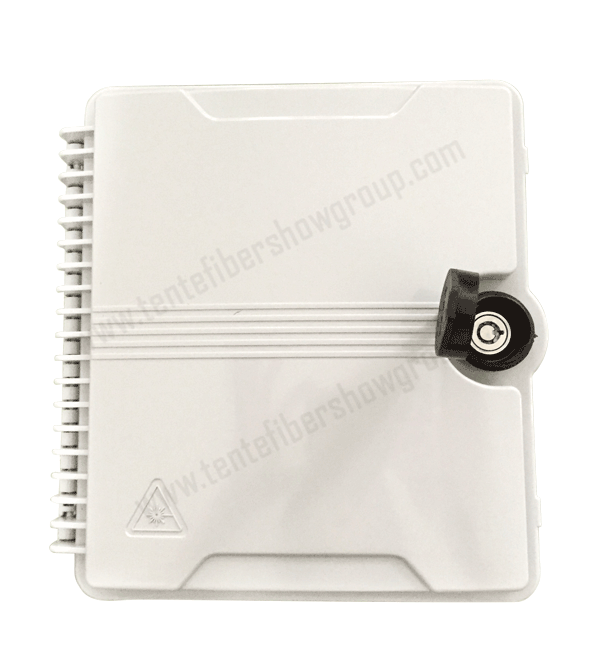

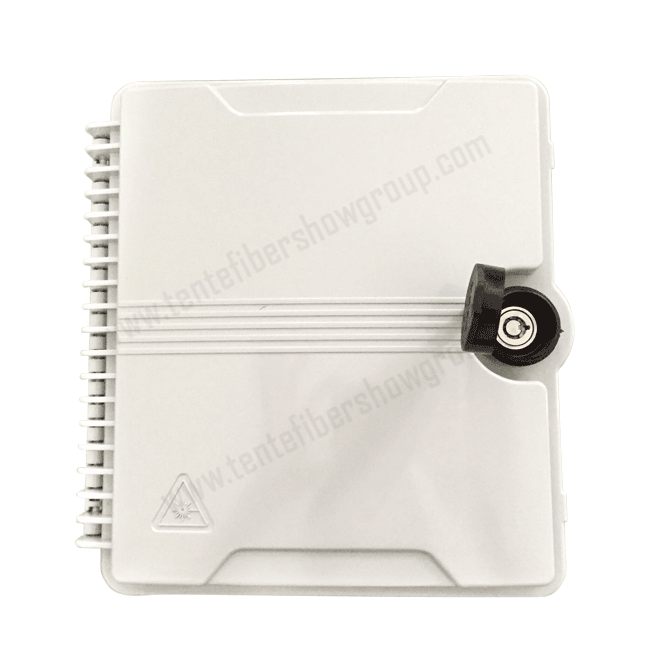

TT-T1-FB-12S FTTH BOX

Details:

MODEL:GFS23-TX08/12G

Tente termination box is designed for use in residential,communication room,business and outdoor applications for the termination of up to 12 fibers.

FTB is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system.It allows also fiber splitting,splicing and distribution.Provides solid protection and management for the FTTH network building.



FEATURES & BENEFITS

Total   enclosed structure

Clamping for feeder   and drop cable

Can be   installed in wall or pole mount

Suitable for outdoor   use

Secured   unique Lock

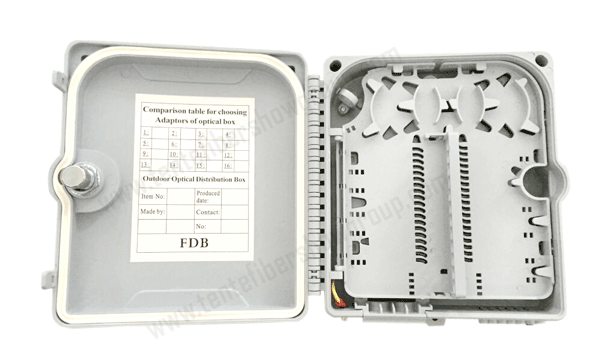

Flip tray to allow   access to pigtail and cable entry

Material:PC+ABS

Water proof,dust   proof,protection level :IP65

TECHNICAL   CHARACTERISTICS

Number of   Splice trays

1

Maximum fiber   capacity

12

Numbers of   Customer feed

12 patch cord

Operating   Temperature

‘-40℃ to +85℃

Materials

PC+ABS

Testing

Optical   Tested:1310nm,1550nm and 1625nm

Relative   Humidity

≤85%(+30℃)

Atmospheric   Pressure

70KPa-106KPa

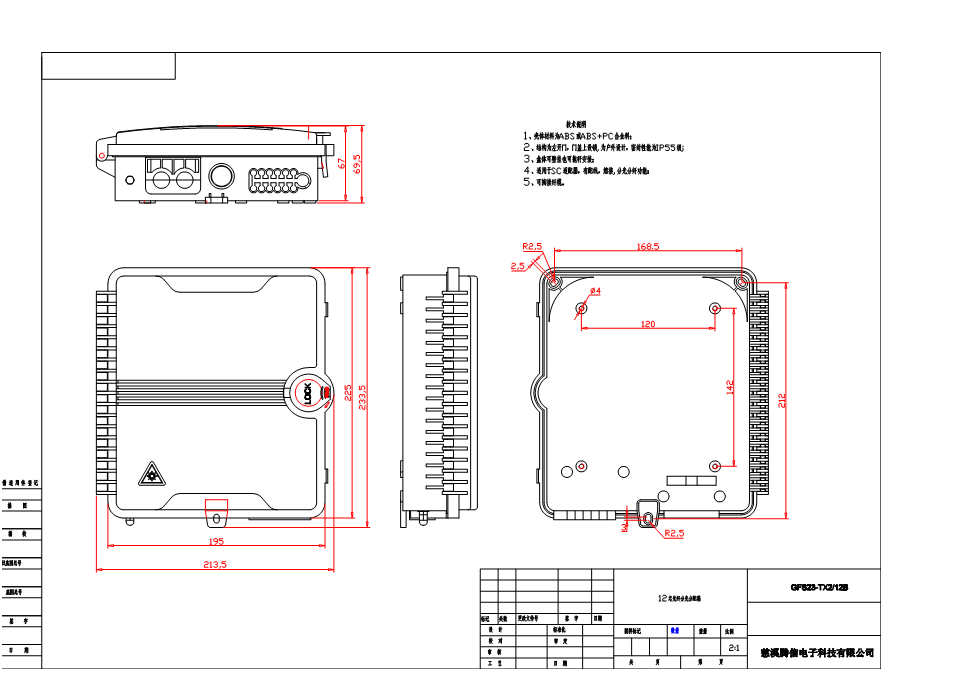

FIBER TERMINATION   BOX SCHEMATIC DIAGRAM

Size:234mm*183mm*64mm


ACCESSORIES INCLUDED

Enter cable cut type:

1.Screw: 4mm*40mm  4pcs

2.Expension bolt: M6  4pcs

3.Electrical adhesive tape: 5M  1pcs

4.Cable tie:3mm*10mm  4pcs

5.Heat-shrink sleeve:1.0mm*3mm*60mm  8pcs
