Description:

MU Connector

Details:

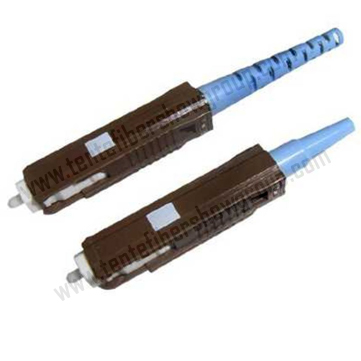

MU Connector



9 MU光纤活动连接器.jpg




Features

* High precision alignment

* Compact, pull-proof design

* Low insertion and back reflection loss

* Good exchangeability

* Good durability

* High temperature stability

* Standard: NTT-MU hardware compatibility


Applications

* CATV

* Video

* Active device termination

* Premise installations

* Telecommunications networks

* Local Area Networks (LANs)

* Data processing networks

* Wide Area Networks (WANs)

Industrial, medical & military



Specification

MU Connnector   Specification

Item

SM

MM

Insertion Loss

Standard type

0.1dB Typical

Standard type

0.2dB Typical

Return Loss

≥50dB   (PC)

≥30dB   (PC)

≥65dB   (APC)

Durability

≤0.1dB   typical change, 1000 matings

≤0.1dB   typical change, 1000 matings

Operating Temperature

-40ºC to +75ºC

-40ºC to +75ºC

Storage Temperature

-40ºC to +75ºC

-40ºC to +75ºC

Ferrule Hole Sizes

125μm +1/-0,   Concentricity: ≤ 1μm

127μm (MM)

(Custom sizes available)

 125.5μm +1/-0,   Concentricity: ≤ 1μm



126μm +1/-0,   Concentricity: ≤ 1μm


Availability


Pre-assembled   1pcs/connector kits available

Connector kits with /   without ferrule available


Various boot(cable) sizes   available

Clips are available for   duplex connectors

Ordering Information

Fiber Number

Ferrule Type

Housing Color

Boot(cable) Size

Boot Color

Simplex

SM: 125μm

Brown

0.9mm   Slotted/Smooth

Blue

Duplex

SM: 125.5μm

Green

2.0mm   Slotted/Smooth

Black


SM: 126μm

MU-J

3.0mm   Slotted/Smooth

Green


MM: 127μm



Lavender

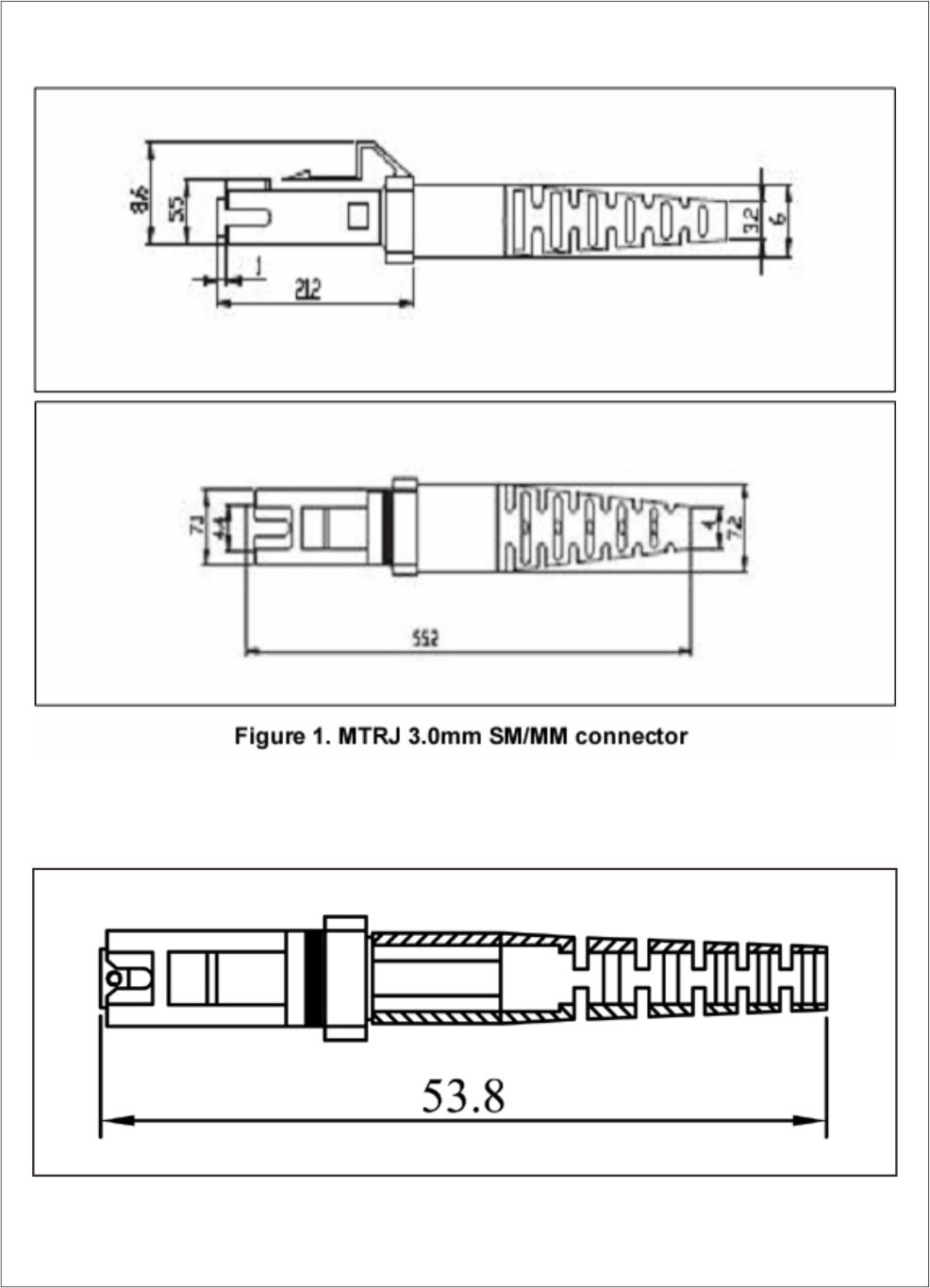

Appearance & Dimension
