Description:

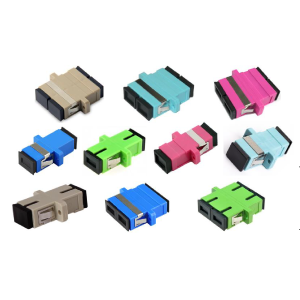

Fiber Optic Adapter—SC Series

Details:

Description

SC series fiber optic adapters are plug type with plastic housing material.

Single-mode SC/UPC it is blue color, single-mode SC/APC is green color, multi-mode SC/UPC is grey color, OM3 LC/UPC is aqua color, OM4

LC/UPC is magenta color.


Feature

- Simplex and duplex panel cutouts.

- Panel clip for easy installation.

- Increase panel density and quick plug in installation.


Application

- Telecommunications

- CATV

- LAN & WAN

- Network

- Broadband

- FTTP

Specifications

Parameter

Single-mode

Multi-mode

Insertion   Loss

≤0.2dB

Exchangeability

0.2dB   max. increase

Repeatability   (500 mating)

0.2dB   max. increase

Sleeve   Material

Ceramic

Phosphor bronze

Housing   Material

Plastic

Operating   Temperature

-20℃ to   +85℃

Storage   Temperature

-40℃ to   +85℃

Order Information

Fiber   Type

Single-mode (SM) or Multi-mode (MM)

Fiber   Core

Simplex (SP or SX) or Duplex (DP or DX)

Polishing

UPC (or PC) or APC

Color

Blue (SM UPC) / Green (SM APC) / Grey (MM   UPC) / Aqua (OM3 UPC) / Magenta (OM4 UPC)
