Features

● Low insertion loss

● High back reflection loss

● Stable capability and high reliability

● Excellent mechanical capability

● Boots in a variety of colors

●  PVC jacket as default, LSZH/OFNP jacket for choose

Description

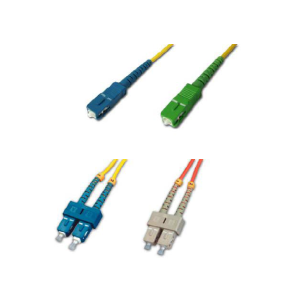

Fiber Optic Patch Cable also known as fiber patch cord cable,optical cable or fiber optic jumper. As an important component commonly used in fiber optic networks, high quality fiber patch cable are essential for any high performance fiber optic networks. Tente offers an extensive line of fiber optic patch cables with LC,SC,FC,ST,MU,MTRJ and E2000 connector choose, which  manufactured  using  high  quality  material  and are strictly tested for insertion and return loss to ensure  superior performance and  quality. This series SC/LC  fiber optic patch cable provide you many types  including SC/LC to  SC,  SC/LC to LC,SC/LC to  ST,  SC/LC to  FC with simplex or duplex fibers. You  can also  customize your own  cables such  as  OS1,OS2,OM1,OM2,OM3 or OM4 fibers Single Mode 9/125 m , Multimode 62.5/125 m, Multimode 50/125 m with different length andwavelength 850nm, 1310nm, 1550nm.

Standard Compliance

●  JSC, IEC 61300-3-3 Standard

●  Bellcore, TELCORDIA GR-326-CORE

●  RoHS compliant, UL94V-0

●  TIA/EIA-568B, TIA/EIA-598, IOS/IEC-11801

Application

●  Optical fiber communications system

●  Optical fiber access networks

●  Optical fiber CATV

●  Optical fiber test equipment

●  Optical fiber data communication

●  Premises Distribution

●  Local Area Networks (LAN)

●  Fiber-to-the-Home (FTTX)

●  Device Terminations

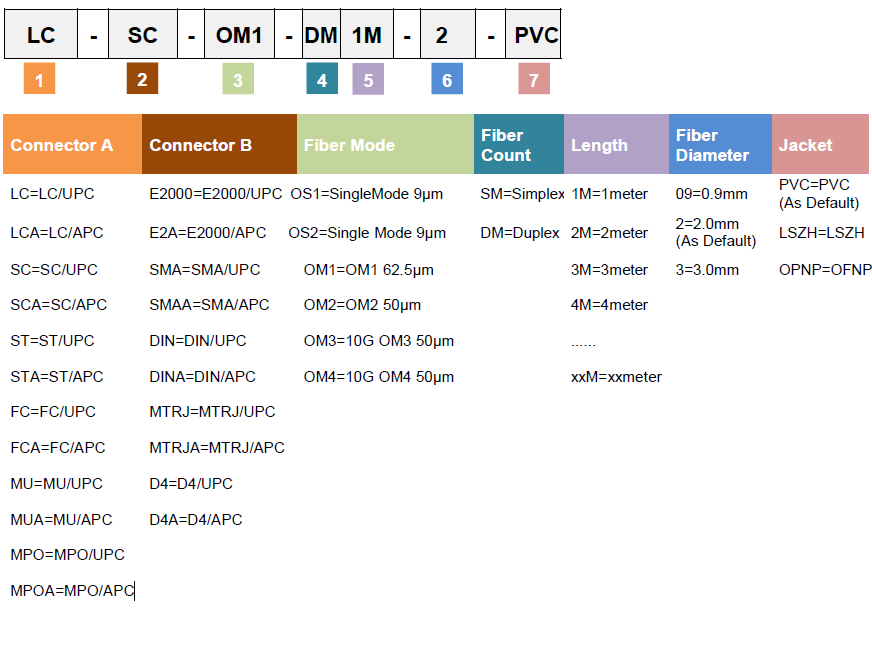

Ordering information Examples

Mechanical strength

Tensile strength in use: 100N Tensile strength during installation: 200N

Impact resistance with 0.74 Nm hammer head radius r = 25 mm: 20 times

Regular compressive strength: 100N/cm

Short-term compressive strength: 100N/cm

Fiber Patch Cable Part Numbers
