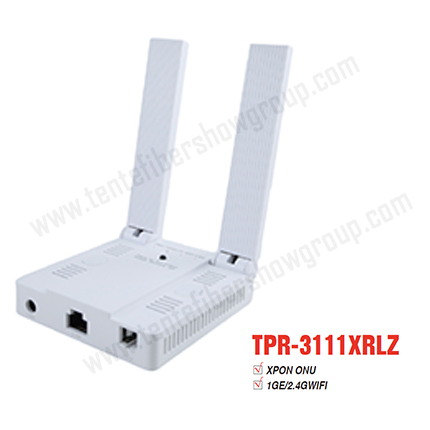

TPR-3111XRLZ is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data service access.

TPR-3111XRLZ is based on mature and stable, cost-effective XPON technology.

TPR-3111XRLZ adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

Functional Feature

• Support EPON/GPON mode and switch mode automatically

• Support Route mode for PPPoE/IPoE/Static IP and Bridge mode

• Support IPv4 and IPv6 Dual mode

• Support 2.4G WIFI 802.11 b/g/n and 2*2 MIMO

• Support LAN IP and DHCP Server configuration

• Support Port Mapping and Loop-Detect

• Support Firewall function and ACL function

• Support IGMP Snooping/Proxy multicast feature

• Support TR069 remote configuration and maintenance

• Specialized design for system breakdown prevention to maintain stable system
