Overview

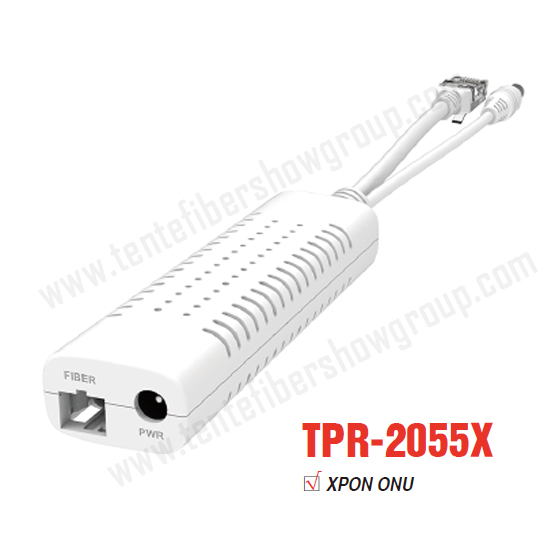

TPR-2055X series single-user ONU is designed for ONU in different FTTH solutions by Tente, The carrier-class FTTH application provides data service access.

TPR-2055X series adopts high-performance and low-consumption chips, and supports CTC V2.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices.

TPR-2055X series is designed by ZTE chipset.

Small size, suitable for installation in various occasions

Functional Feature

• Router mode supports PPPoE / DHCP / static IP

• Support port-based rate limitation and bandwidth control

• In compliant with ITU-T G.984 Standard

• Up to 20KM transmission distance

• Support data encryption, group broadcasting, port VLAN separation, etc.

• Support Dynamic Bandwidth Allocation (DBA)

• Support IPv4 &IPv6

• Support ONU auto-discovery/Link detection/remote upgrade of software

• Support VLAN division and user separation to avoid broadcast storm

• Support power-off alarm function, easy for link problem detection

• Support broadcasting storm resistance function

• Specialized design for system breakdown prevention to maintain stable system

• Support software online upgrading EMS network management based on SNMP, convenient for maintenance

• Support DC-Out with DC5525

• Support 802.3af for PD
