Description:
Indoor Cable and FTTH cable sheathing Line
Details:

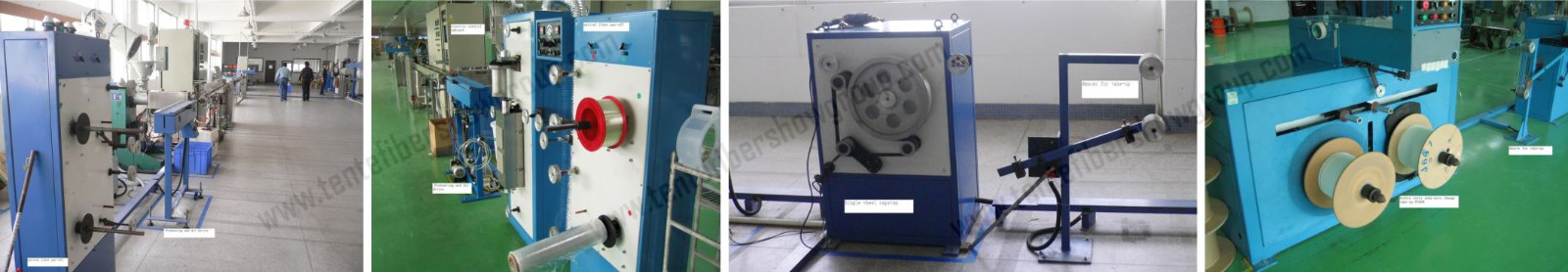

Indoor Cable and FTTH cable sheathing Line
Application of the line
The line is mainly used to produce 2 core indoor optical cable, Include: simplex cable, Duplex cable, FTTH cable and so on.
Line configuration
| 1 PN800 wire pay-off | 1 |
| 2 4 tight-fiber and optical fiber pay-off frame | 1 |
| 3 PN400 FRP or wire pay-off | 2 |
| 4 10 cops aramid pay-off | 1 |
| 5 SJ45×25 extruder and one head | 1 |
| (With feed, compound dryer device and master batch) | 1 |
| 6 4m hot water trough and water tank | 1 |
| 7 12m cooling water trough and refrigerating system | 1 |
| 8 Blow dryer | 1 |
| 9 Diameter control system | 1 |
| 10Φ500 single wheel capstan | 1 |
| 11 Double reel take-up(cumulating:100m) | 1 |
| 12 Electric control system | 1 |
Tight coating optic-fiber dia. | Φ0.6mm, Φ0.9mm |
Cable diameter | Φ2.0mm Φ3.0mm |
Size of FTTH cable | 2.0*3.0mm |
2.0*5.0mm | |
Size of tight fiber pay-off reel | PN400mm～PN630mm |
Size of optical fiber pay-off reel | PN 235 |
Size of take-up reel | PN400～PN630 |
Pay-off tension of tight fiber | 0.5N-1.5N±0.05N |
Pay-off tension of tight fiber | 0.4N-1.5N±0.05N |
Take-up tension | 3N-20N |
Aramid cops | 10 |
Aramid pay-off tension | 0.5N-3N±0.05N(adjustable) |
Line speed | |
Extra-attenuation | ≤0.02dB/Km |
Line operation direction | appointed by consumer |
Line color | appointed by consumer |
Power supply | |
Line centre height | 1000mm |

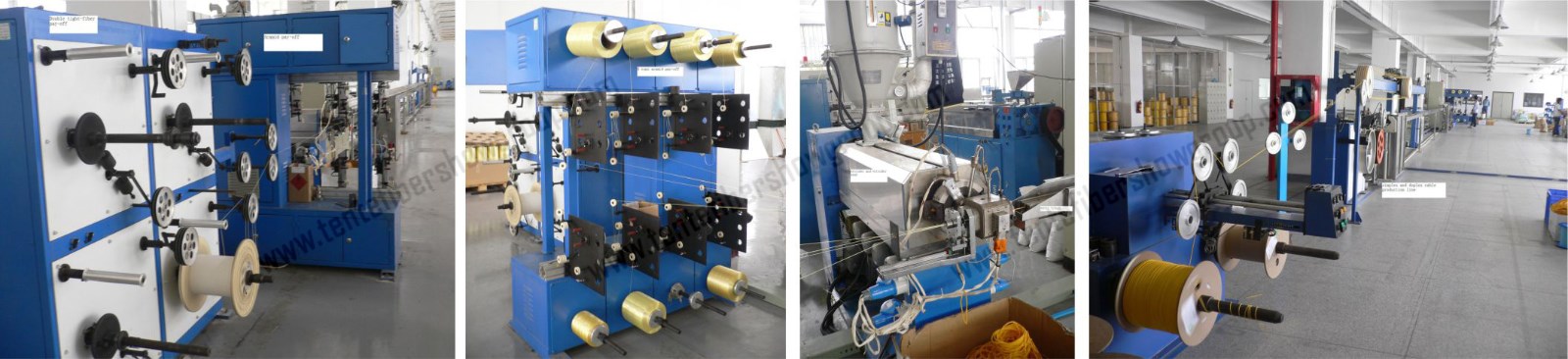

Application of the line
The line is used to extrude tight buffer fiber which the diameter is 0.6mm and 0.9mm.The extruding material can be LSZH, PVC.
Line configuration
| 1 2 spools optical fiber pay-off | 1 |
| 2 Preheating and dry device | 1 |
| 3 One extruder SJ30×25 one self-center head | 1 |
| (With feed, compound dryer device and master batch) | 1 |
| 4 4M Hot water trough | 1 |
| 5 Hot water tank | 1 |
| 6 12 M cooling trough | 1 |
| 7 Cooling water tank (with refrigerating device) | 1 |
| 8 Blow dryer device | 1 |
| 9 Diameter control system | 1 |
| 10 Φ400 capstan | 1 |
| 11 Dual reel take-up for tight buffer fiber | 1 |
| 12 Electrical control system | 1 |
Number of optical fiber Pay-off | 2 spools |
Optical fiber pay-off tension | 0.4-1.2N |
Optical fiber reel size | φ236×108mm×φ160 |
φ236×236mm×φ160 | |
Structure speed | 300m/min |
Working speed | 250m/min |
Tight buffer fiber dia | 0.6mm , 0.9mm |
Extruded material | PVC, LSZH |
Extra-attenuation | ≤0.02dB/km(1310nm,1550nm) |
Metering accuracy | ≤0.2% |
Installed power | 25KVA |
Operation direction | Appointed by user |
Line color | Appointed by user |
Line dimension | 21m×3m×3m |
