Description:

SMA Connector

Details:

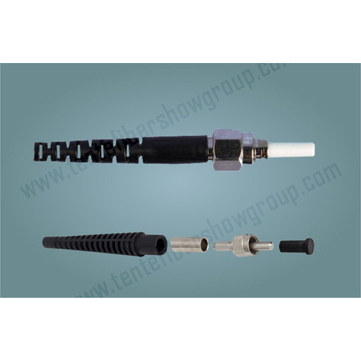

SMA Connector

12 SMA 光纤活动连接器 副本.jpg

 SMA 905&906



Features

* ANSI 、 IEC 、 TIA/EIA 、 NTT and JIS standard compatible

* UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm

* Precision mechanical dimensions

* Multi-piece type or one-piece type is available

* Content RoHs claim



Application

* Telecommunication

* CATV

* LAN & WAN

* Network

* Broadband

* FTTP.





Specifications

Item

Parameter

Single-Mode

Multi-Mode

Insertion Loss

≤0.3dB

Durability (1000 Mating)

0.2dB Max.

Operating Temperature

-40℃~+75℃

Storage Temperature

-40℃~+85℃

Remark: Ferrule   Concentricity SM< 1um; MM< 1.4um

Ferrule inner diameter   tolerance +1/-0um

Ferrule outer diameter   tolerance +/-0.5 um
