Description:

Single-fiber Covered Wire Cable

H denotes to LSZH Sheath
1B denotes to no. of fibers i.e. 1,
A1 denotes to Fiber Type G.657A1

Details:

Single-fiber Covered Wire Cable

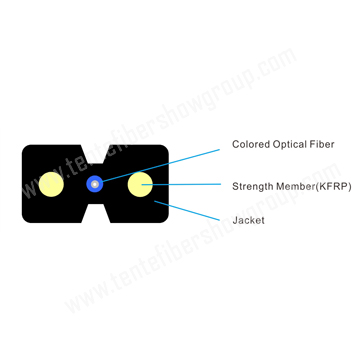

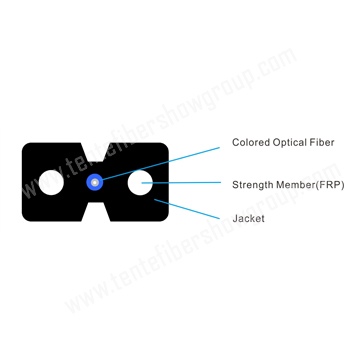

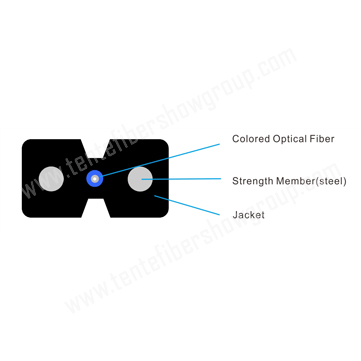

Profile View

GJXH-1B6a1


GJXFH-1B6a1


GJXKFH-1B6a1

H denotes to LSZH Sheath

1B denotes to no. of fibers i.e. 1,

A1 denotes to Fiber Type G.657A1



The FTTH drop cable is light, soft and easy to bend. It is suitable for aerial installation. And it also provides a smaller bending radius while using G.657 series of fiber. Either PVC or LSZH outer sheath can be selected.



Packing

- Paper drum with carton box protection



Marking

Cable Marker every Meter by:

- Project name or project owner

- Year of manufacture

- Type of cable

- Number of fiber

- Cable length

- Etc.



Delivery Length

Standard delivery lengths are 2km/drum



Cable Parameters

Items

Specifications

Fiber Type

SM

Fiber Count

1

Jacket

Diameter

(3.0 ± 0.1)mm×(2.0 ± 0.1)mm

Material

LSZH / PVC

Color

Black

Strength Member

FRP


Mechanical and Environmental Characteristics

Items

Unite

Specifications

FRP

1.0mm Steel

Tension (Long Term)

N

40

100

Tension (Short Term)

N

80

200

Crush (Long Term)

N / 10cm

500

1000

Crush (Short Term)

N / 10cm

1000

2200

Min. Bend Radius (Dynamic)

mm

40

Min. Bend Radius (Static)

mm

20

Installation Temperature

-20~+60

Operating Temperature

-40~+70

Storage Temperature

-40~+70



Fiber Parameters



No.

Items

Unit

Specification

G.652D

1

Mode Field Diameter(1310nm)

μm

(8.6~9.5)±0.6

2

Cladding Diameter

μm

125.0±1.0

3

Cladding Non-Circularity

%

≤1.0

4

Core-Cladding Concentricity Error

μm

≤0.6

5

Coating Diameter

μm

245±5

6

Cladding-Coating Concentricity Error

μm

≤12.5

7

Fiber Cutoff Wavelength

nm

λccf≤1260

8

Attenuation
  (max.)

1310nm

Db / km

≤0.35

1550nm

≤0.2
