Parameters

Index

Channel No.

λ

2

3

4

5

6

7

8

9

Max insertion   loss

dB

0.8

1

1.4

1.8

2.2

2.6

3

3.4

Center   wavelength

nm

1310 . 1470 .   1490 . 1510 . 1530 . 1550 . 1570 . 1590 . 1610

Passband width

nm

±6.5

Passband   flatness

dB

≤0.5

Adjacent channel   isolation

dB

≥30

Non-adjacent   channel isolation

dB

≥45

Wavelength   thermal stability

nm/℃

<0.002

Insertion loss thermal stability

dB/℃

≤0.005

≤0.005

≤0.007

≤0.008

Return loss

dB

≥45

Polarization   mode dispersion

ps

≤0.10

≤0.10

≤0.15

≤0.15

PDL

dB

≤0.10

≤0.15

≤0.20

≤0.25

Directivity

dB

≥50

Max power

mW

500

Operating   temperature

℃

-10~+70

Storage   temperature

℃

-40~+85

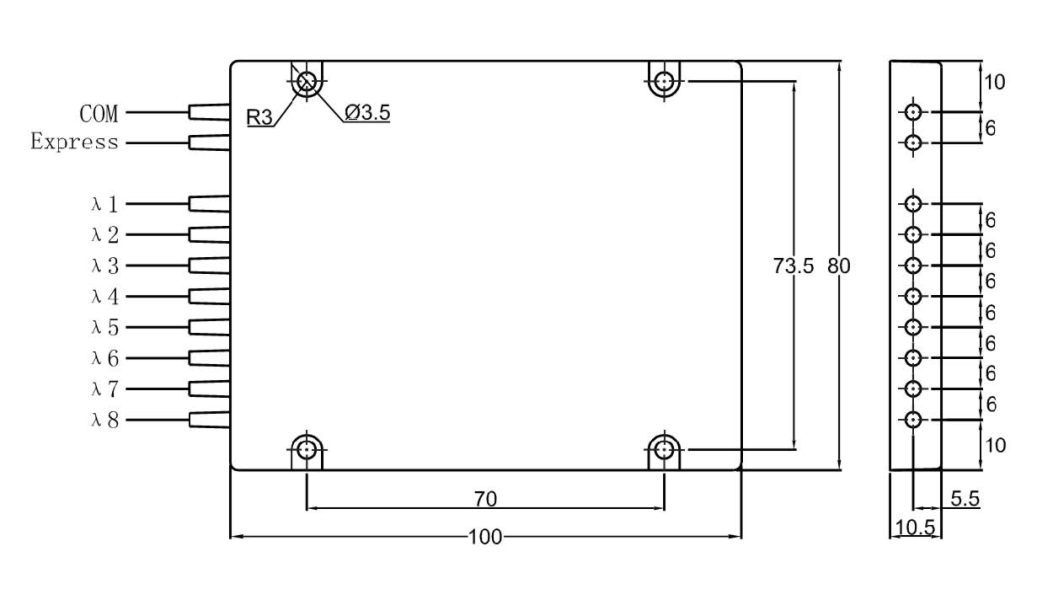

Dimension

mm

100×80×10.5

Remarks

1.16 channels   WDM (wavelength from 1270nm-1610nm) can be ustomized
2. Rack-mounted customization is available.

1×N

Wavelength

Package spec

Fiber Type

Fiber Diameter

Fiber Length

Connector

N=1
  N=2 …
  N=16

1270 nm
1290 nm

1310 nm …

1570 nm
1590 nm
1610 nm

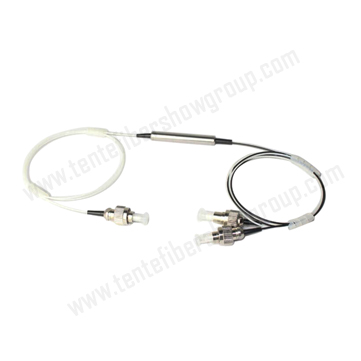

1: Φ5.5mm×34mm
2: Φ5.5mm×35.4mm

3:  90×20×10 mm

4:  100×80×10.5 mm

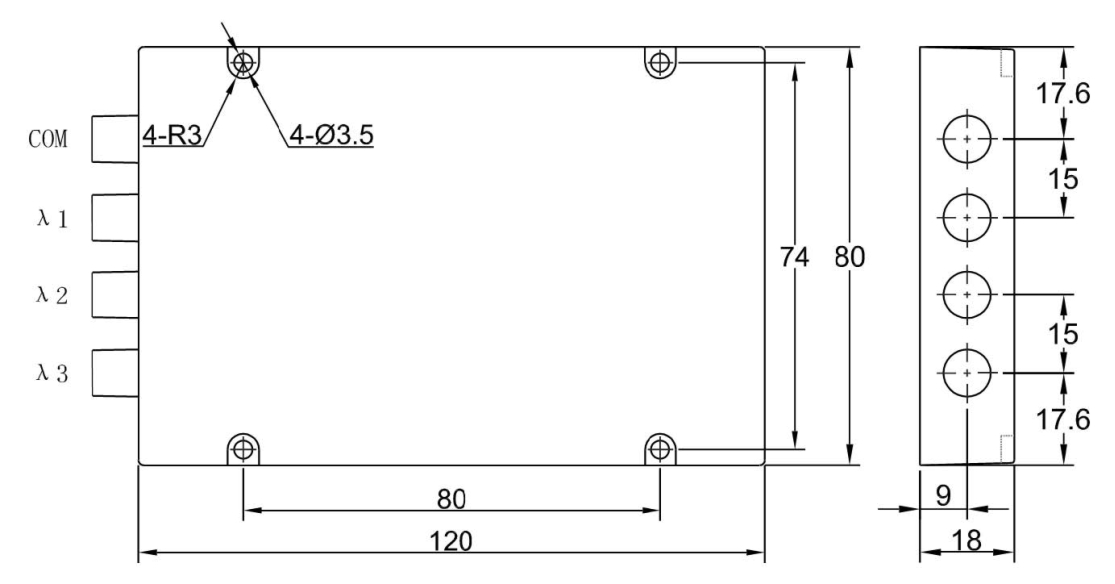

5:  120×80×18 mm

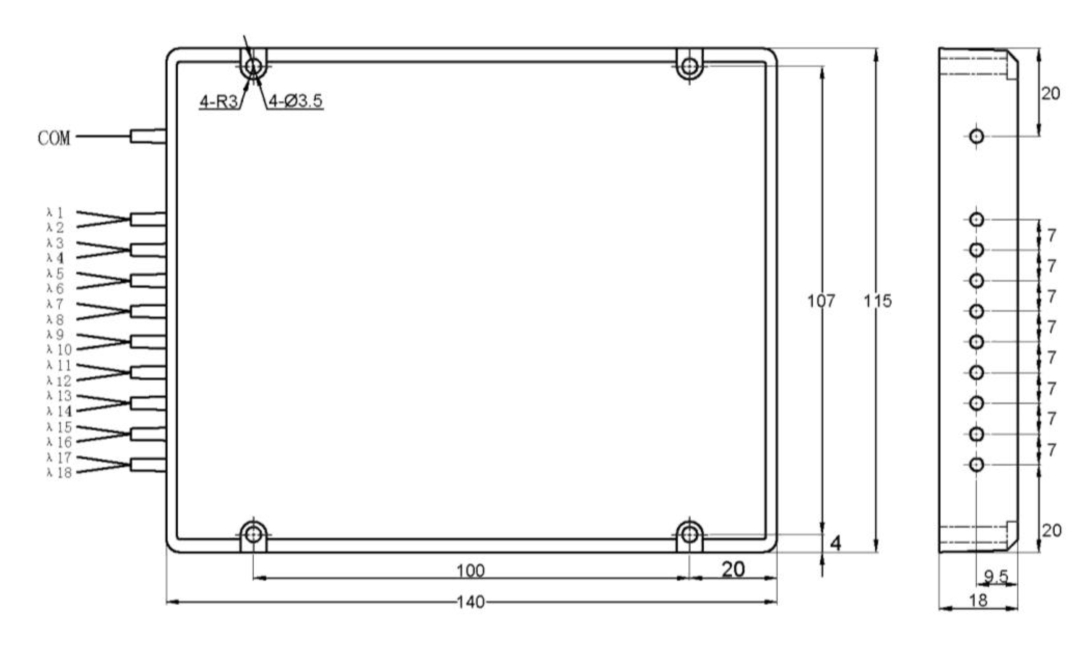

6:  140×115×18 mm

7:  1U×:Others

9: 9/125×:Others

25:250um
  90:900um
  20:2.0mm
  30: 3.0mm
  X: Others

05:0.5m
  10:1.0m
  15:1.5m
  X:Others

OO:None FP:
