Description:

Bunchy pigtail

Details:

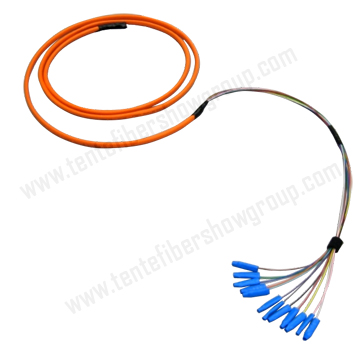

Bunchy pigtail








Product Overview

Fan-out cable connector use the special deconcerntrator to separate the ribbon ( eg: 12 cores ) from the cable , and to protect the fiber,

Then assemble the connector for fan-out connect into the ODF, Applied to optical fiber maintenance, Rush to repair, adjusting and line distribution of machine room


Parameter

Unit

Fan-Out Cable Connector

SC/FC/ST

LC/MU

PC

UPC

APC

Insertion Loss(Insert &   pull)

SM

dB

≤0.3

≤0.2

≤0.3

≤0.4

MM

dB

≤0.3

≤0.3

Return Loss

SM

dB

PC≥45 UPC≥50 APC≥60

MM

dB

  ≥35

Repeatability

dB

≤0.2

Changeability

dB

≤0.2

Operating Temperature

℃

﹣30 ～ +75

Storage Temperature

℃

﹣40 ～ +85
