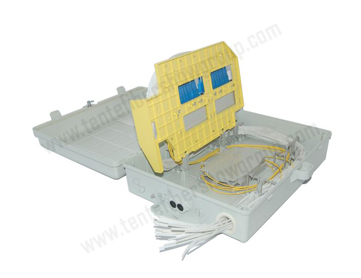

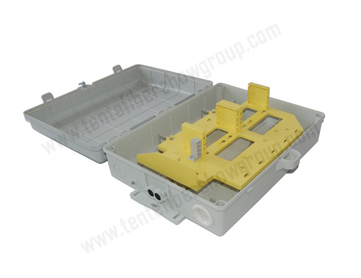

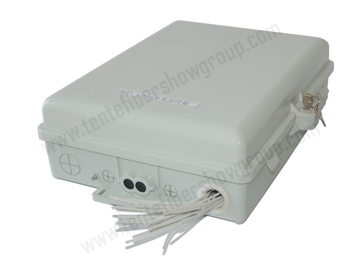

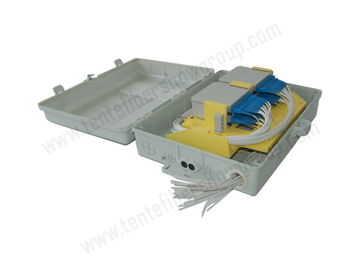

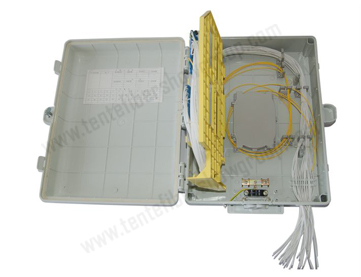

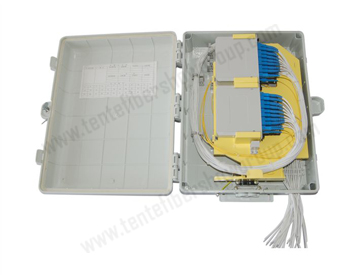

TT-YH-5 A  1：32(Insert Type) Fiber Optic Splitter Box

Performance:

1.Fire-retardant, waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -40 °C - +60 °C natural environment.

4.Good sealing performance

5.IP 65

Material: PC ( outdoor/indoor use)

Size: Length 420mm* Width 320mm* Height 125mm

Maximum fiber capacity: 1/32 cores

Splitter: 4 pcs.(1:8/unit, instert Type)

Installation method:wall mounted,pole mounted.

Sealing method: with keys

Number of the tray: 1-2 pcs, can open to 120°

Tray capacity: 12-24 cores

Packing: 0.0488m³/2pcs

Weight:1.9kg/piece
