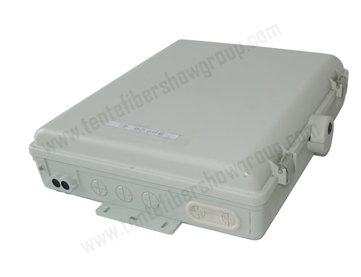

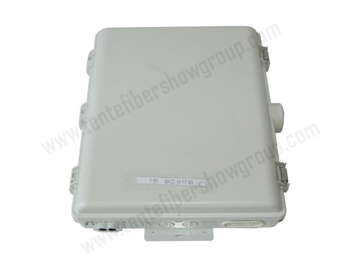

TT-YH-7 Type  48cores Fiber Optic Distribution Box

Performance:

1.Fire-retardant, waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -40 °C - +60 °C natural environment.

4.Good sealing performance

5.IP65

Material: PC ( outdoor/indoor use)

Size: Length 460mm* Width 395mm* Height 125mm

Maximum fiber capacity:?Max 72cores fibers for pigtail fusion directly

Adaptors:Duplex SC adapters or simplex SC adapters

Cable:Drop cable, outdoor cable, standard indoor cable

Installation method:wall mounted,pole mounted.

Sealing method: with keys

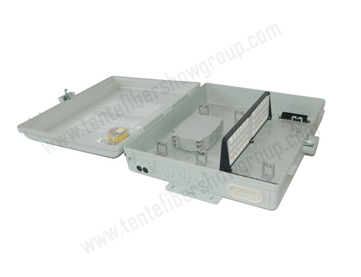

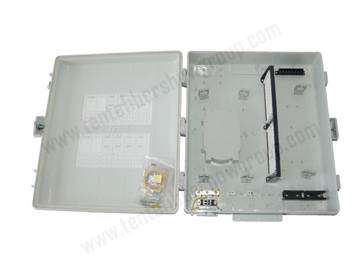

Number of the tray: 4 pcs, can open to 120°

Tray capacity: 12 cores

Packing: 0.058m³/2pcs

Weight:  3.05kg/1pcs
