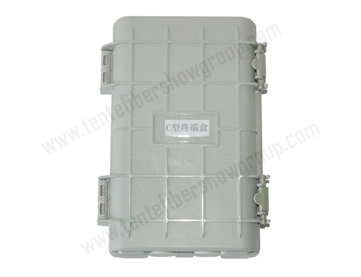

TT-YH-C Fiber Optic Termination Box

Performance:

1.Fire-retardant(availble), waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -35 °C - +60 °C natural environment.

4.Good sealing performance

5.IP 53

Material: Plastic (ABS indoor) or PC outdoor

Size: Length 241mm* Width 173mm* Height 40mm

Maximum fiber capacity: 12-24 cores

Sealing method: with buckles

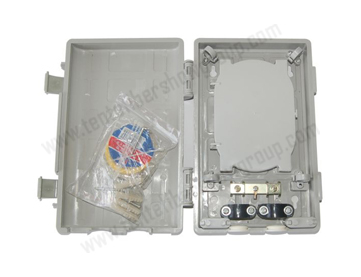

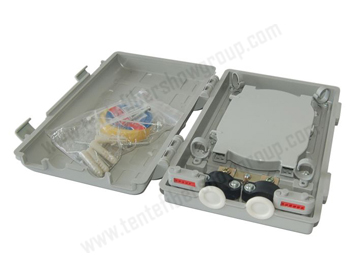

Splice tray: one pcs splice tray with 12 cores

Packing: 0.062m³ Weight:0.33kg/1pcs

Certificate: ISO T19001-2000idt ISO9001:2000 standard and an appointed product of China Telecom China Mobile
