Description:
Fast Connector
Details:

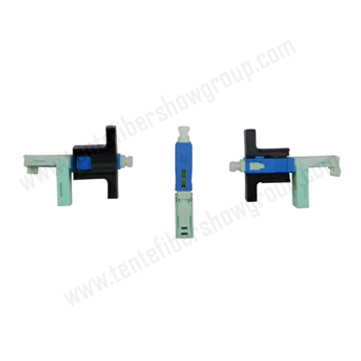

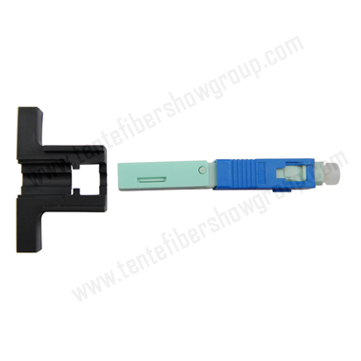

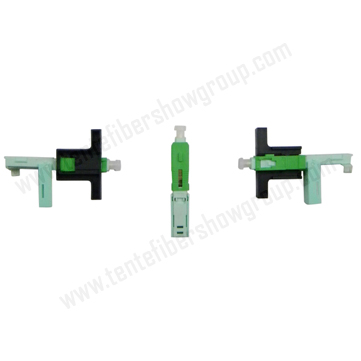

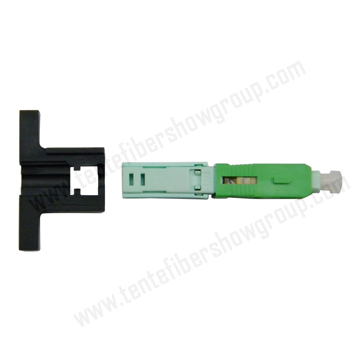

Fast Connector
|
|
|
|
TPR-2305 | TPR-2306 |
Design and Performances
Purpose: High performance; Long life; Low cost; Easy assembly
Performance
Item | Performance |
Insertion Loss | Average≤0.3dB , Max≤0.5dB |
Return Ross | PC:≥45dB , APC:≥55dB |
One-time Assembly Rate | ≥97% |
Assembly Repeatability | More than 5 times |
Average Assembly Time | ≤3minutes |
Life-time | ≥30 years |
Tensile Strength | ≥30N (2×3 drop cable) |
Bow-type drop cable | |
Operation Temperature | -40℃~+85℃ |
Advantages
C-Slot replaces v-groove（Patent）
Deforming v-groove ,making bad connection.
Plastic expands with heat contracts with cold ,making products can not work normally in temp -40~85℃。
Low rigidity of plastic, making v-groove deforms.
Easy to deform or rust for plastic and metal material, making bad connection
Interconnection inside the ferrule hole--high precision interconnection (patent)

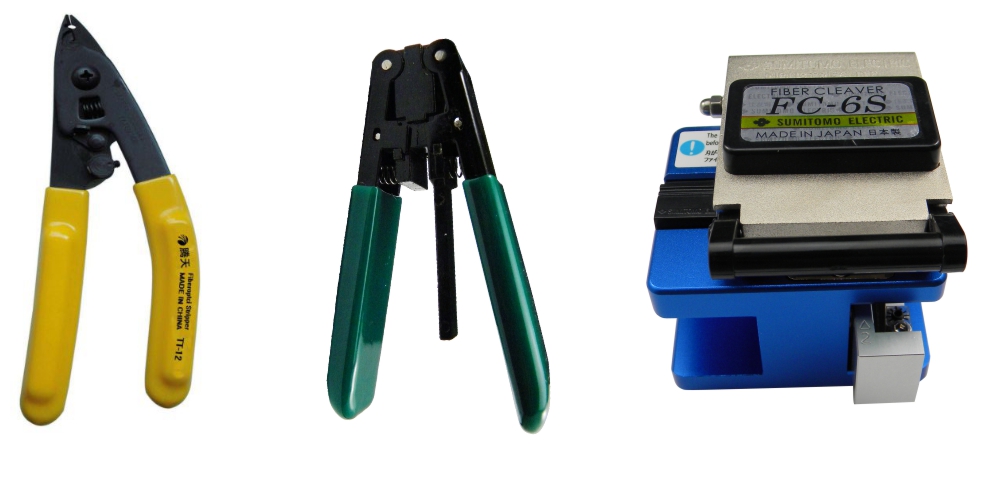

You need the following tools
