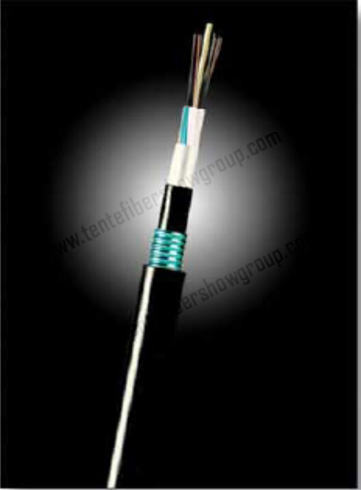

Stranded Loose Tube Non-metallic Strength
Member Armored Cable(GYFTA53)
Description

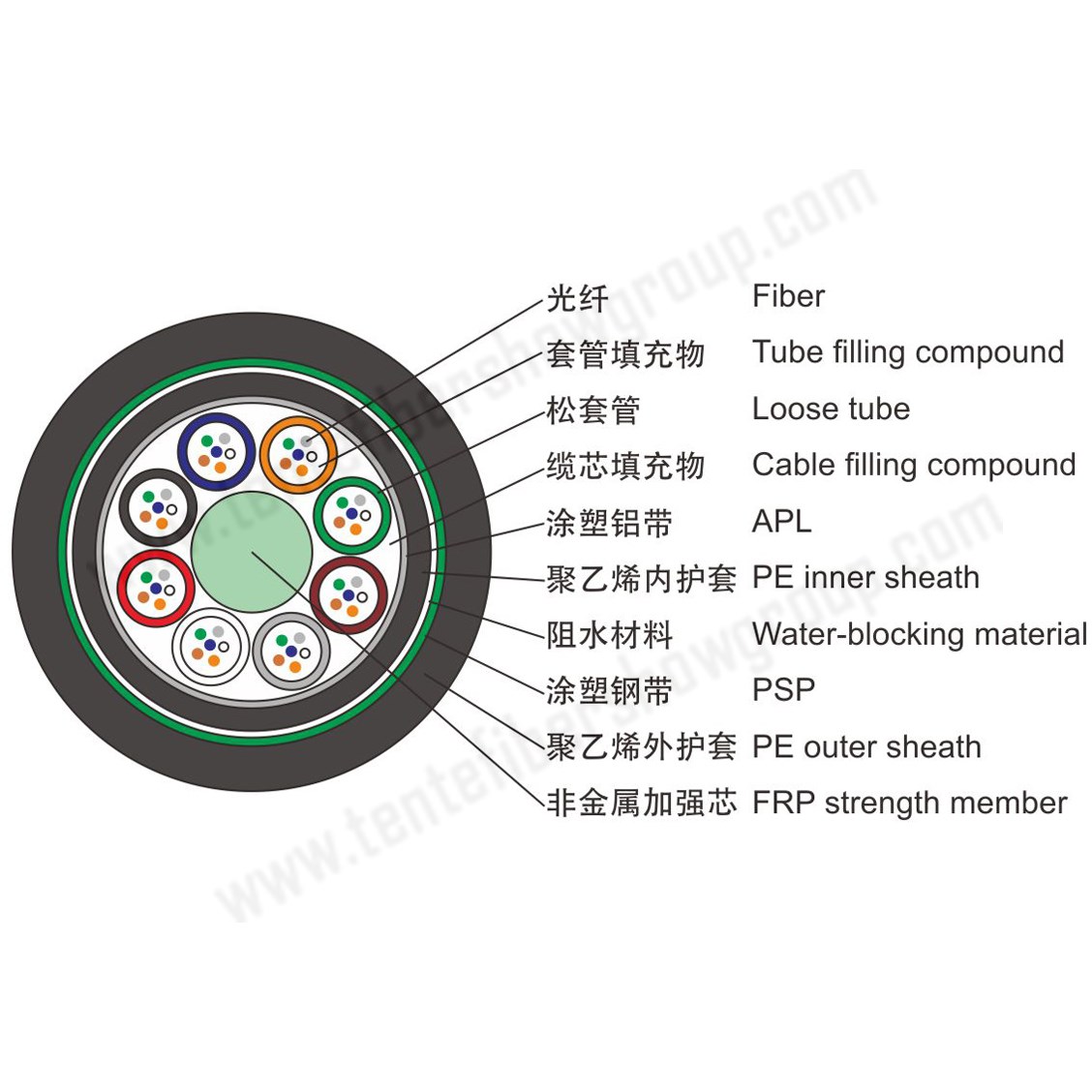

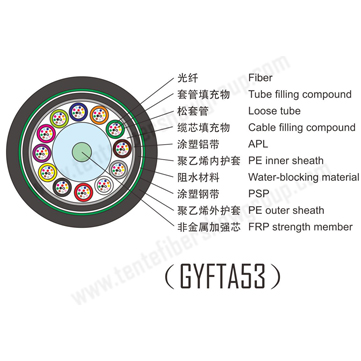

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material
Standards
GYFTA53 cable complies with Standard YD/T 901-2001 as well as
Application: Duct / Aerial/Direct buried
Optical Characteristics
G.652 | G.655 | 50/125 µm | 62.5/125 µm | ||
Attenuation(+20℃) | @ 850 nm | ≤ 3.0 dB/km | ≤ 3.0 dB/km | ||
@1300 nm | ≤ 1.0 dB/km | ≤ 1.0 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
Bandwidth(Class A) | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 1000 MHz·km | ≥ 600 MHz·km | |||
Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm |
Technical Parameters
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius Dynamic |
GYFTA53-2~6Xn | 2~6 | 1 | 7 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-8~12Xn | 8~12 | 2 | 6 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-14~18Xn | 14~18 | 3 | 5 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-20~24Xn | 20~24 | 4 | 4 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-26~30Xn | 26~30 | 5 | 3 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-32~36Xn | 32~36 | 6 | 2 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-38~42Xn | 38~42 | 7 | 1 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-44~48Xn | 44~48 | 8 | 0 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-50~60Xn | 50~60 | 5 | 3 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-62~72Xn | 62~72 | 6 | 2 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-74~84Xn | 74~84 | 7 | 1 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-86~96Xn | 86~96 | 8 | 0 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-98~108Xn | 98~108 | 9 | 1 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-110~120Xn | 110~120 | 10 | 0 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-122~132Xn | 122~132 | 11 | 1 | 22.3 | 415 | 1000/3000 | 1000/3000 | 10D/20D |
GYFTA53-134~144Xn | 134~144 | 12 | 0 | 22.3 | 415 | 1000/3000 | 1000/3000 | 10D/20D |
Note:Storage/Operating Temperature: -40℃ to +70℃
Note:
a. Suffix Xn denotes fiber type .
b. The colour arrangements of fiber and tube are specified in the colour identification table.
c. The nominal value of the PE outer sheath thickness is 1.8mm while the nominal value of the PE inner sheath thickness is 0.9mm.
