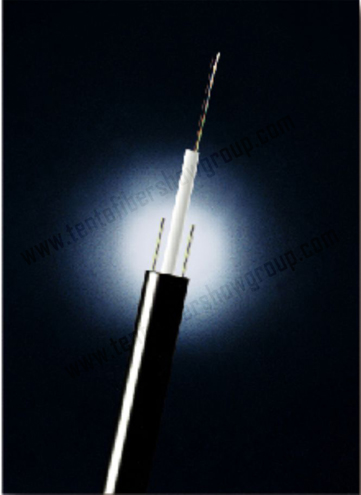

Unitube Non-metallic Non-armored Cable(GYFXY)
Description

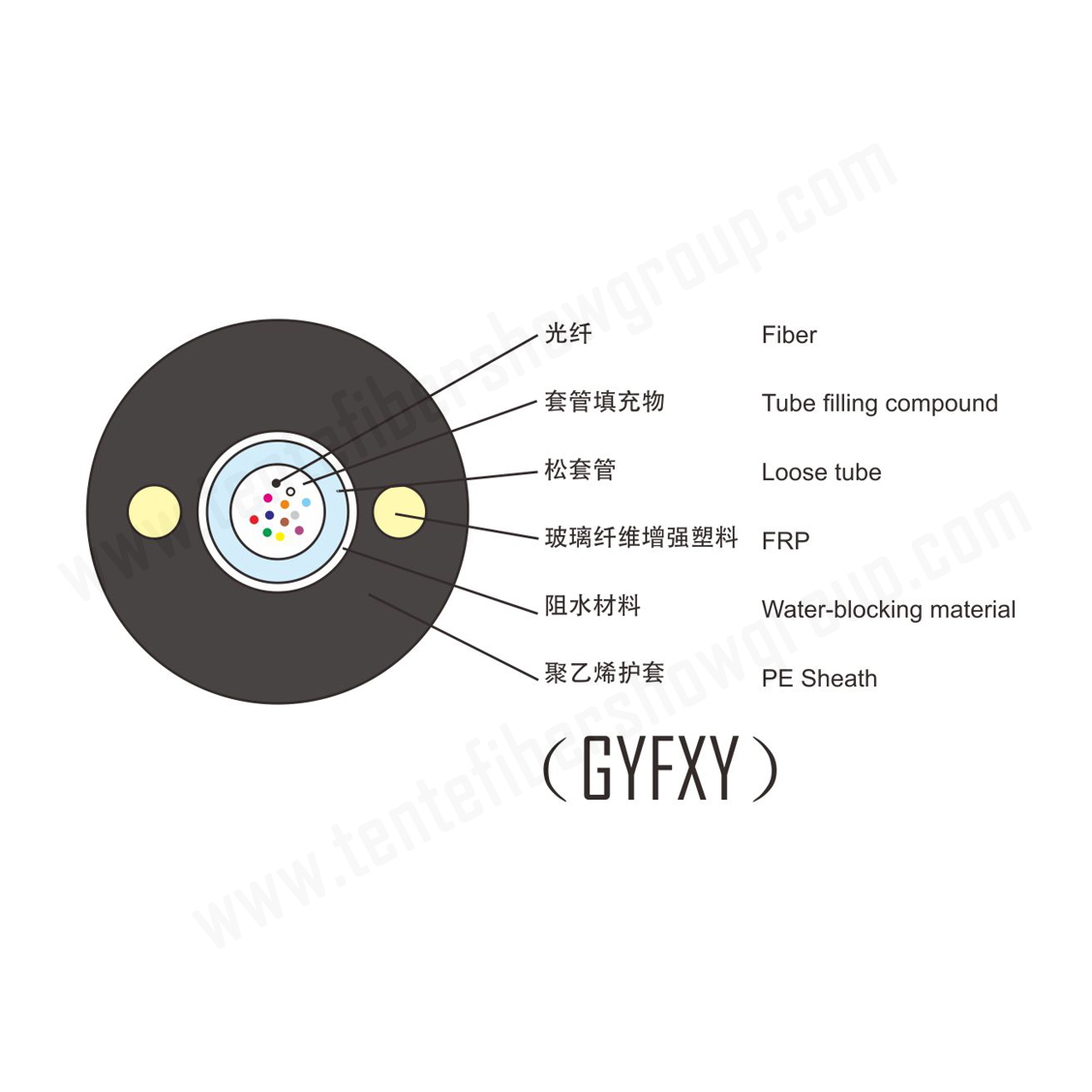

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Two parallel FRPs ensure tensile strength
PE sheath protects cable from ultraviolet radiation
Small diameter, light weight and friendly installation
Long delivery length
Standards
GYFXY cable complies with Standard YD/T 769-2003.
Application: Aerial
Optical Characteristics
G.652 | G.655 | 50/125 µm | 62.5/125 µm | ||
Attenuation(+20℃) | @ 850 nm | ≤ 3.0 dB/km | ≤ 3.0 dB/km | ||
@1300 nm | ≤ 1.0 dB/km | ≤ 1.0 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
Bandwidth(Class A) | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 1000 MHz·km | ≥ 600 MHz·km | |||
Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm |
Technical Parameters
Cable Type (Increased by 2 fibers) | Fiber Count | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
GYFXY-2~12Xn | 2~12 | 81 | 短期1500N,长期600N或1KM缆重中取最大值 | 300/1000 | 10D/20D |
Note:Storage/Operating Temperature: -40℃ to +70℃
Note:
a. Suffix Xn denotes fiber type.
b. The colour arrangements of fiber and tube are specified in the colour identification table.
c. The nominal value of the PE sheath minimum thickness outside of the strength member is 0.8mm.
