Description:

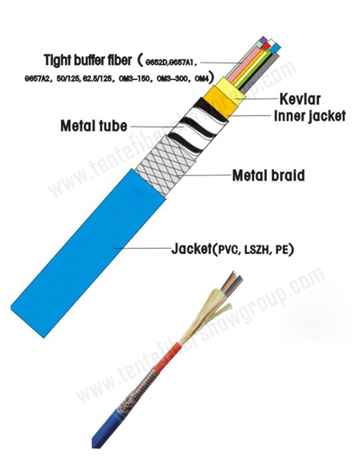

Armored Cable > TF-FO-12

Details:


Armored Cable > TF-FO-12



Products Description

Features:

1.Convenience for connection and construction

2.High intensity and light weight

3.Provide UV protection, and mould proof, no cleft under stress, adapt to the environment for high fire rating



Applications:

1.Ideal for use in vertical cabling of buildings and LAN;

2.Ideal for use in tails of backbone network, and connect from outdoors to indoors directly;

3.Ideal for use in connecting equipments, fix standard fiber to the linker;



Specifications:

Item

Units

Single Mode

Multimode



Core/Mode



μm

9.2±0.4μm@1310nm

50±2.5μm

62.5±2.5μm

Diameter

10.4±0.8μm@1550nm

Cladding Diameter

μm

125±1μm

125±1μm

125±1μm

Max. Attenuation

dB/km

0.4dB/km@1310nm

3.5dB/km@850nm

3.5dB/km@850nm

0.3dB/km@1550nm

1.5dB/km@1300nm

1.5dB/km@1300nm

Operating temperature

-40℃~+85℃

Outer diameter

mm

7.4±0.10mm

Net weight

kg/km

85

Allowable bending radius

(mm)

75

Allowable tensile

(N)

800
