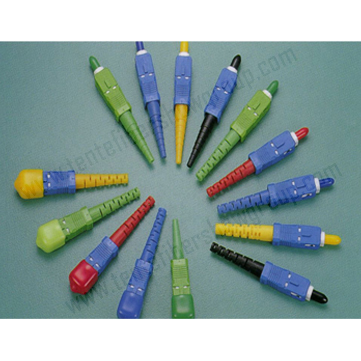

SC Connector

Features

*SC Simplex or Duplex

*ANSI 、 IEC 、 TIA/EIA 、 NTT and JIS standard compatible

*UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or   3.0mm

*Precision mechanical dimensions

*Zirconia ferrule PC or 8 degree APC diameter125~128 um high   concentricity

*Single mode, Multimode and Angle PC

*Multi-piece type or one-piece type is available

*All parts compliant with ROHS

Application

* Telecommunication

*  CATV

*  LAN & WAN

* Network

*  Broadband

*  FTTP

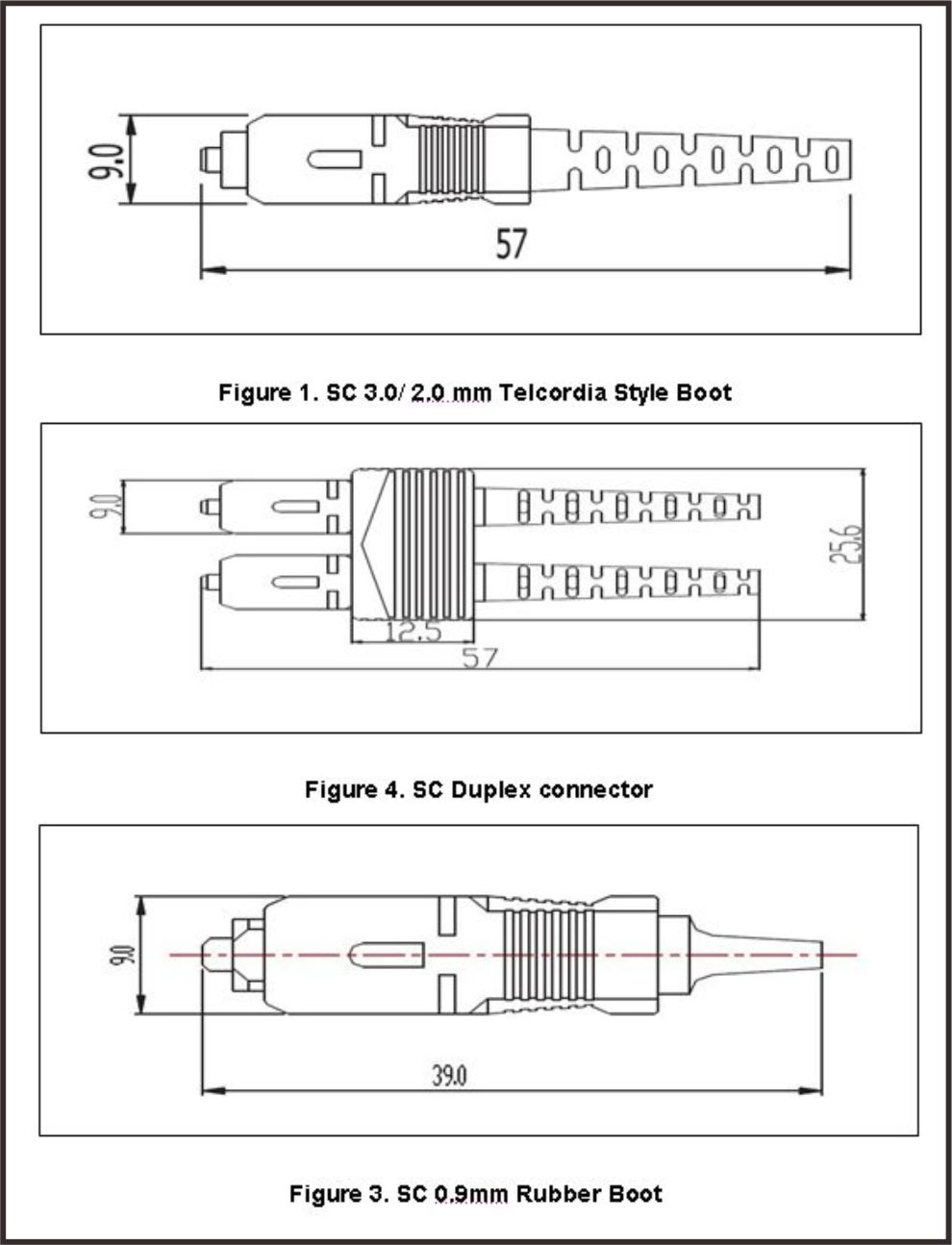

Appearance & Dimension
