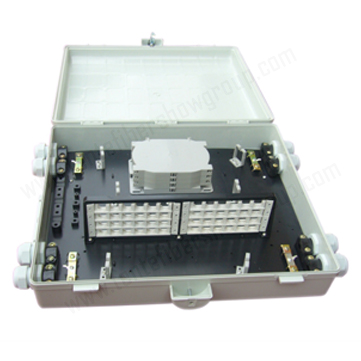

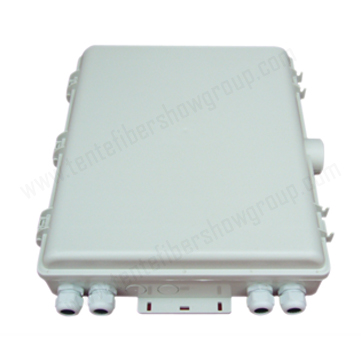

Fiber Optic Distribution Box

TT-YH-8 Type  48cores

Performance

1.Fire-retardant, waterproof, shock-proof, breakage-proof

2.Protect the external cable from stretching, distortion, and other physical effects

3.Used under -40 °C - +60 °C natural environment.

4.Good sealing performance

5.IP65

Material: PC ( outdoor/indoor use)

Size: Length 510mm* Width 430mm* Height 120mm

Maximum fiber capacity:?Max 48 cores fibers for pigtail fusion directly

Adaptors:Duplex SC adapters or simplex SC adapters

Cable:Drop cable, outdoor cable, standard indoor cable

Installation method:wall mounted,pole mounted.

Sealing method: with keys

Number of the tray: 4 pcs, can open to 120°

Tray capacity: 12 cores

Packing: 0.02m³/1pcs

Weight:  1.91kg/1pcs(gross weight)
