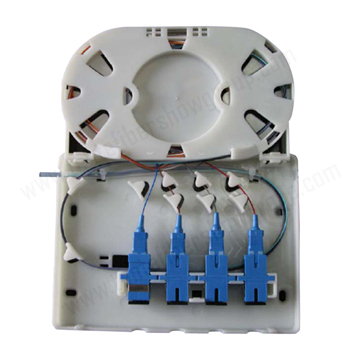

TPR-1004B Terminal Box

Product Specifications

Model :TFB1004B

Dimension: 150 mm x 110 mm x 30 mm

Material: ABS

N0. of Optical Adaptor: Max. 4

Adaptor type: SC/PC

Splice capacity: Max. 1

Splice method: Fusion

Bending radius after installation: 15 mm throughout the whole terminal

Main Technical Indexes

Environmental Temperature：－25℃～40℃;

Max capacity: 4 fibers;

Suitable types of fiber cables: 4 fibers indoor fiber cables;
