1 Introduction

Leather rope wire cutting machine is mainly used for cutting, messenger cable with high speed, length, accurate, overall cover an area of an area small, simple operation, safe and reliable, long life and other characteristics.

2 Technical parameters　

Voltage: 220 vac

Power: 2.2 KW

X940x1450 shape size (dimensions) : 1560

Machine weight: 300 kg

Largest cable tray diameter: 600 mm

Largest cable tray length: 420 mm

Cable tray positioning aperture: 45 ~ 55

Into a circle diameter: 250 mm (optional)

Into a ring width: 135 mm (optional)

Feeding speed: an average of 4.65 M (in 200 into a circle diameter, for example)

Length: control precision of 0.3%

maximum cutting length：500 meters

3 Machine constitute the introduction

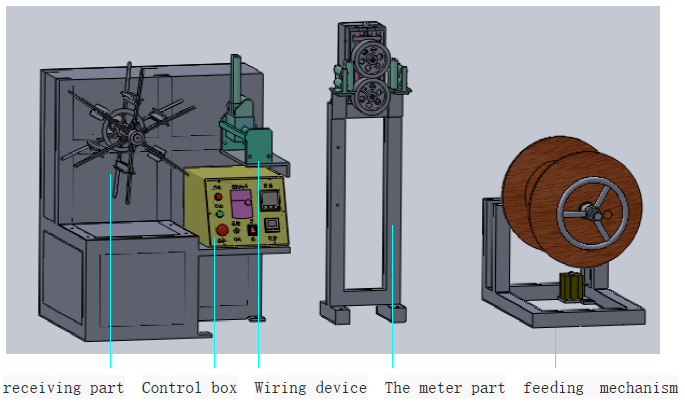

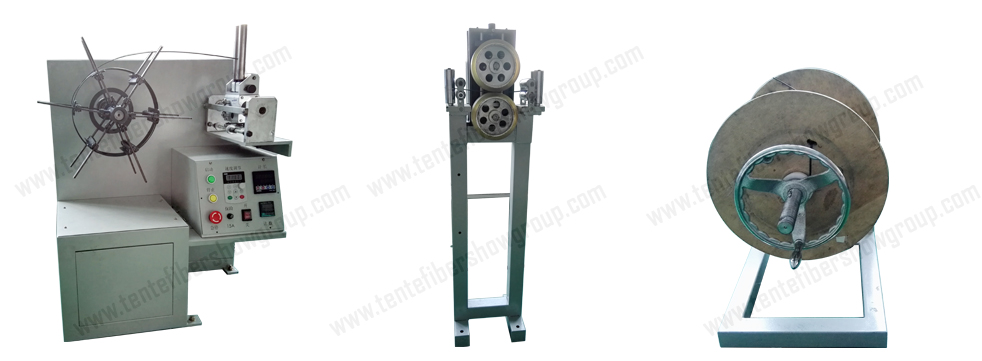

The machine picture

receiving part  —Used for knitting receiving cables

Control box    —The whole machine control and operation

Wiring device   —Neat row line

The meter part  —Calculate the cable length of receiving

feeding mechanism  —Cable tray of the up and down
