TPR-2309

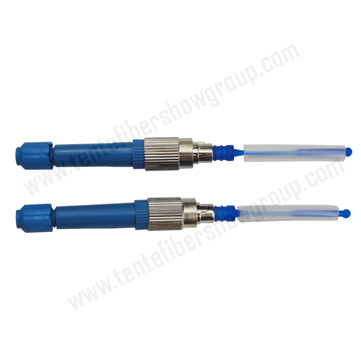

FC-Fast Connector
Item | Parameters |
Application | 3.0 x 2.0 mm butterfly drop cable |
Cladding Diameter | 125μm ( 657A & 657B ) |
Coating Diameter | 250μm |
Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
Reflection Loss | > 50dB |
Rate of success | >95% |
Clamping Force | >5 N |
Tension | >20 N |
Temperature Range | -40~+75℃ |
Tension Test when installed (20 N) | △ IL ≤ 0.2dB △ RL ≤ 5dB |
Mechanical Endurance (500 times) | △ IL ≤ 0.2dB △ RL ≤ 5dB |
Fall-down Test (4 meters height, 3 time each direction) | △ IL ≤ 0.2dB △ RL ≤ 5dB |
