Main Features

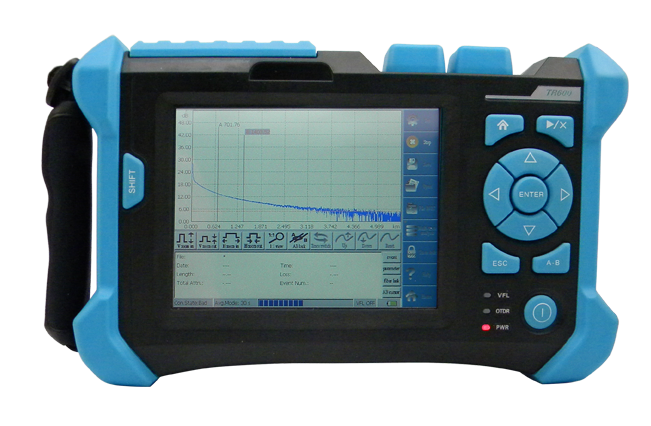

5 inches high Resolution colorful LCD display, image can be turned according to position.
Average splice time: 10 second
NO. | Type | Specification |
1 | TPR-620A | SV20A:1310/1550nm、32/30dB |
2 | TPR-620B | MV10A:850/1300nm、21/19dB |
3 | TPR-620C | SV30A:1310/1490/1550nm、32/30/30dB |
4 | TPR-620D | SV20C:1310/1550nm、38/36dB |
5 | TPR-620E | SS24AF:1310/1550SMF+1625SMF,32/30/28dB |

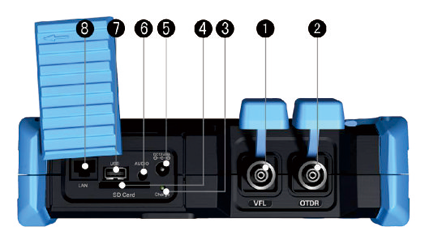

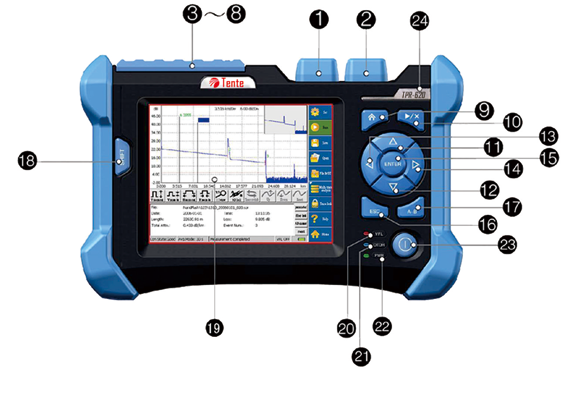

1.Optical interface 1/VFL
2.Optical interface 2/OTDR
3.Charging indicator
4.SD card interface
5.Power adapter interface
6.Earphone interface
7.USB interface
8.Ethernet interface
9.Home page button
10.Measurement/stop button
11.Move cursor upwards
12.Move cursor downwards
13.Move cursor to left
14.Move cursor to right
15.Fix button
16.Esc Button
17.A/B line switching button
18.Shift functional button
19.Touch screen
20.VFL indicator
21.OTDR measurement indicator
22.Power indicator
23.Power switch button
24.Model and name of product

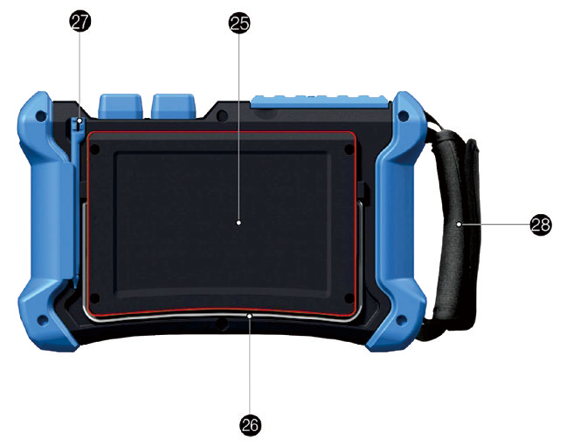

25.Storage of rechargeable lithium battery
26.U bracket
27.Touch pen
28.Wrist belt
Appendix 1 Technical Parameters of TPR-620 OTDR
Technical Specifications1 | ||||||||||||||
Wavelength (nm) | 850/1300 | 1310/1550 | 1310/1490/1550 | 1625 | ||||||||||
Dynamic range (dB)2 | 23/21 | 32/30 | 34/32 | 36/34 | 38/36 | 34/32/32 | 38/36/36 | 304 | 325 | 344 | 365 | |||
Pulse width (ns) | 5、20、40、80、160、320、640、1280 | 5、20、40、80、160、320、640、1280、2560、5120、10240、20480 | ||||||||||||
Event blind zone (m)3 | 2m | 2m | ||||||||||||
Attenuation blind zone (m)3 | 9m | 9m | ||||||||||||
Linearity (dB/dB) | ±0.05 dB/ dB | |||||||||||||
Loss threshold (dB) | 0.05 | |||||||||||||
Loss resolution ratio (dB) | 0.01 | |||||||||||||
Sampling resolution ratio (m) | 0.125 to 8 | |||||||||||||
Sampling point | 32K | |||||||||||||
Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) | |||||||||||||
Distance scope (km) | 0.3 to180 | |||||||||||||
Typical real-time refreshing duration (s) | 0.2 | |||||||||||||
Memory capacity of trace | SD Card (2G), > 10000 pieces | |||||||||||||
Duration of measurement | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable | |||||||||||||
General specification | Interface category | |||||||||||||
Dimension(H×W×D) | 150×235×66 | Optical interface | FC/UPC (PC, and APC are selectable) | |||||||||||
Weight | 1.5kg | Data interface | USB interface, SD card interface | |||||||||||
Temperature | Running temperature -10℃ to 50℃ | |||||||||||||
Memory temperature -40℃ to 70℃ | Visible failure orientation VFL | |||||||||||||
Relative humidity | 0% to 95% (non condensation) | Wavelength | 650nm | |||||||||||
Power supply | Lithium battery; continuing working duration ≥ 8 hours | Output power (dBm) | ≥-3 | |||||||||||
Warranty period | 12 months | Maximum testing distance | 3km | |||||||||||
Remarks: 1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity. | ||||||||||||||
2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min. | ||||||||||||||
3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width. | ||||||||||||||
4. Dynamic range measured when there is filter. | ||||||||||||||
5. Dynamic range measured when there is no filter. | ||||||||||||||
Remarks:
1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity.
2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min.
3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.
4. Dynamic range measured when there is filter.
5. Dynamic range measured when there is no filter.
