TPR-301 Power Meter

Time:2015-5-25 16:07:41Click Count:3610 Source:

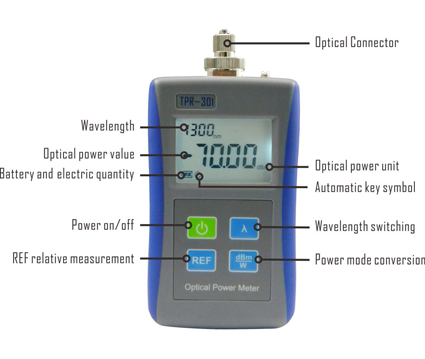

Panel definition

Description

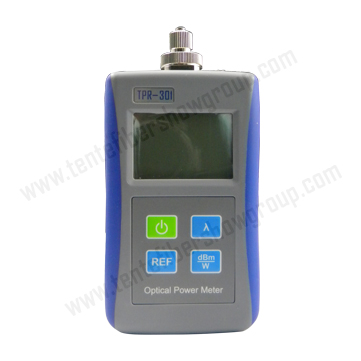

TPR-301 Handheld Optical Power Meter is a self-developed test instrument which is widely used for installation, operation and maintenance of fiber-optic network. It features smart appearance, backlight, auto-shutdown and wider dynamic range, good testing precision and universal optical connector for FC/SC/ST.



Features

High sensitivity, large dynamic range

Universal connector interface FC/SC/ST

Quick response, without warm-up and reducing testing time

Low-voltage display function

Optional auto-shutdown

Automatic calibration function

The relative ratio test

Large LCD display and backlight



Application

Fiber cable Telecom installation

Fiber optic communication maintenance

Fiber Optic R&D and Training

Optical fiber cabling system



Specifications

Type	TPR-301
Wavelength（nm）	800～1650
Detector	InGaAs
Optical Connector	FC SC ST/ Universal 2.5mm adaptor (LC、MU can be optional )
Measurement Range（dBm）	TPR-301	-50～+26
Uncertainty	±5%
Calibrated Wavelength（nm）	850、1300、1310、1490、1550、1625
Resolution(dB)	0.01
Power Supply	3pcs AAA 1.5V batteries
Battery working time(h)	120
Operating Temperature(℃)	-10～+50
Storage Temperature(℃)	-20～+70
Automatic shutdown（min）	10
Dimension（mm）	125*65*29mm
Weight（g）	160g
