Optical Fiber Coloring and Rewinding Equipment

Details:

Optical Fiber Coloring and Rewinding Equipment

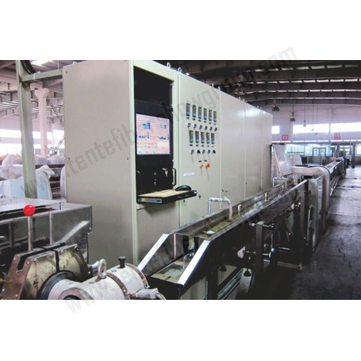

 28-1 Indoor & FTTH Cable Prodution Line.jpg

Application of the machine

  The equipment is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers within the loose tube. Also used to rewind fibers.


Main technical data

Optical fiber number

1

Accuracy of the counter

≤0.1%

Coloring speed

≥1600m/min (Nitrogen gas )

Optical fiber reel size (max.)

25km/50km reel   weight 10kg

Structure speed

1800m/min

236～300mm  (out dia. of reel)

Rewinding speed

≤1800m/min

108～250mm  (width of reel)

Thickness of coloring layer

3～5μm

Ф25.4mm     (axle hole)

Pay-off tension

0.3N～1.2N±0.05N

Power supply

three phases five wires，3×380V±10%,

Take-up tension

0.3N～1.5N±0.05N

50HZ ±2%,  power 23KW

Traversing pitch

0.1～1.0mm±0.01mm

nitrogen purity

≥99.99%

Extra-attenuation after   coloring

≤0.02dB/Km(SM   , 1500Nm)

compressed air

0.5mpa
