Description:
Sheathing Line
Details:

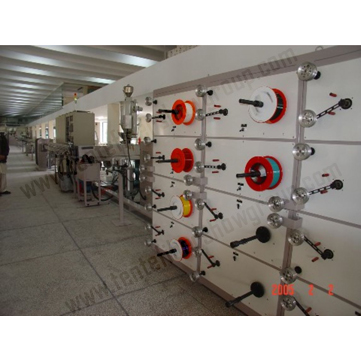

Sheathing Line
Application
The line is used to extrude inner sheathing and out sheathing for optical cable, the extruding materials: LDPE, MDPE, HDPE and so on.
Main data of the sheathing line
Diameter of cable core | Ф3-Ф30mm |
Diameter of loose tube | Ф1.6-Ф10.0 |
Diameter of cable | Ф5-Ф35mm |
Line speed | 60m/min(the dia. of cable:10mm) |
constructional speed | 80m/min |
Pay-off reel size | PN800~PN1800 |
Take-up reel size | PN800~PN1800 |
Extruder output | Max |
Line length | 56m (approximately) |
Operation Direction | Appointed by buyer |
Line center height | 1000mm |
Total weight | 20T(approximately) |
Utility requirements
Electricity | 380v±5% 50Hz AC three phases |
Power | 150kVA |
Pressured air | 5par |
Colour of the machines | Appointed by buyer |
Colour of the control cabinets | Computer color |
Warning colour of the rotating parts | Orange |
