Description:

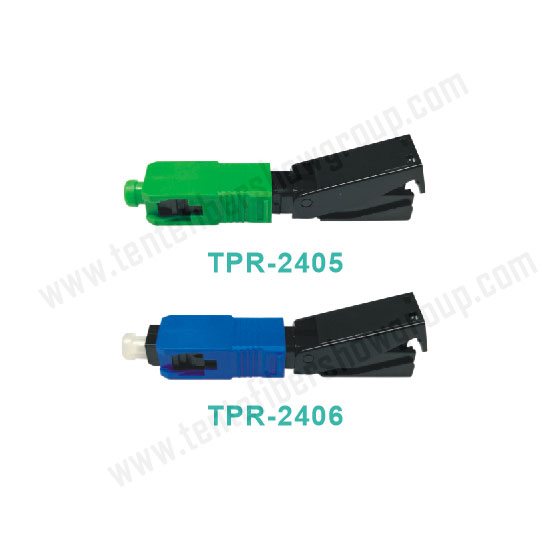

TPR-2405 The Embedded Type Fier Optical Fast Connector
Details:
Type | Item | Technical parameter |
Product size | Length | 50mm |
Application | Cable Type | 2.0x3.0mm FTTH Cable |
Fiber Diameter | 125μm (657A & 657B) | |
Cladding Diameter | 250μm | |
Optical Parameter | Insertion Loss （1310nm & 1550nm） | ≤0.25dB (Avg), ≤0.50dB (Max) |
Return Loss
| ≥50dB (UPC), ≥55dB (APC) | |
3Dsize (Φ2.5mm) | Radius of curvature | 10-25mm (UPC), 5-12mm (APC) |
Vertex offset | ≤50μm | |
Fiber concave-convex(nm) | -100~+100nm | |
APC Angle | NA (UPC), 8±0.3° (APC) | |
Surface requirement | The ferrule surface will be checked in 200X or 400X microscope | No obvious white spots (collapse), black spots (dirt) and shadows (internal cracks) |
Assemble requirement | Average assemble time | ≤3min |
Success rate of assembly | ≥95% | |
Repeatable assembly | ≥5 times | |
Mehanicalparamter | Fiber force | ≥4N |
Cable force | ≥30N | |
Repeatability（Repeat≥10 times， Recording 10 times） | ∆IL≤0.3dB, ∆RL≤5dB | |
Mechanical urability（Repeat≥500 times，Recording 10 times） | ∆IL≤0.3dB, ∆RL≤5dB | |
Vibration（10-50Hz，45 times/min，0.75mm Amplitude, 2 hours at three direction） | ∆IL≤0.3dB, ∆RL≤5dB | |
Fall down（1.5m，8 Times） | ∆IL≤0.3dB, ∆RL≤5dB | |
TWIST（cable type ≥ 15N，10 Times/min， 200 Times） | ∆IL≤0.3dB, ∆RL≤5dB | |
Enviornment parameter | Operating temperature | -40~+85℃ |
High Temp（+85℃，96h） | ∆IL≤0.3dB, ∆RL≤5dB | |
Low Temp（-40℃，96h） | ∆IL≤0.3dB, ∆RL≤5dB | |
Temperature circulation（-40~+85℃， 21times circulation，168 hours in all） | ∆IL≤0.3dB, ∆RL≤5dB | |
Humidity /temperature（+75℃，95%，96h） | ∆IL≤0.3dB, ∆RL≤5dB | |
Soaking (room temperature, tap water, 168h) | ∆IL≤0.3dB, ∆RL≤5dB |
