pigtail

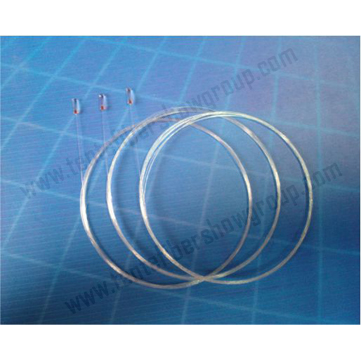

(1.8 Round Sinplex Pigtail)

Specifications: capillary diameter 1 8 mm / 0 1 mm, capillary length 5 5 ~ 6 0 mm,grinding angle of 8 ° ± 0. 5 °, finish 10/5, the surface loss is ≤0. 2% @ 1 2 6 0 ~1 6 2 0 m m, return loss of ≥7 0 d B.

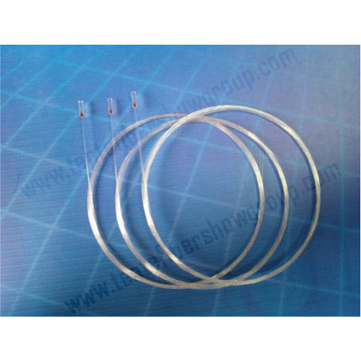

(2.5 square pigtail)

Specifications: capillary diameter 2 5 mm, capillary length 7 ~ 7 5 mm, grinding angle 8 °±

0 5 °, finish 10/5, return loss of ≥7 0 d B.

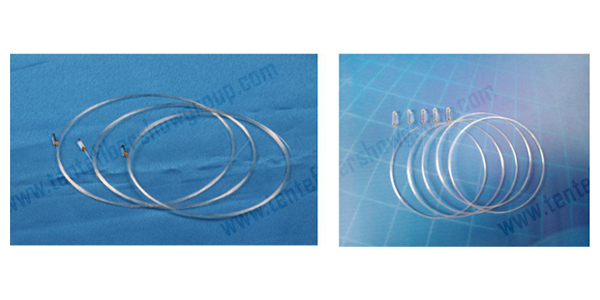

(1.8 round Duplex Pigtail)

Specifications: capillary diameter 1 8 mm / 0 1 mm, capillary length 6 0 ~ 6 5 mm, hole spacing 1 2 7 ± 2μm, grinding angle 8 ° ± 0. 5 °, finish 10/5, the surface loss is ≤0. 2% @ 1 2 6 0 ~ 1 6 2 0 mm, return loss ≥7 0 d B, grinding angle ≤5 °.
