Description:
PLC Chip
Details:

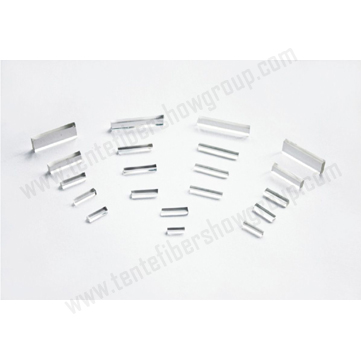

PLC Chip
Product Overview
Fiber Optic Splitter chip based on planar waveguide PLC technology can achieve uniform spectral. low insertion loss, low polarization dependent loss, high stability, and can be widely used in optical fiber communication systems and other FTTX systems and devices. Can be customized according to customer special requirements
Product Features
Low polarization dependent loss
Low insertion loss
Wide operating wavelength
Compact size
ROHS compliant
Product Functions
FTTX
Fiber-optic communications equipment and systems
2×N Optical Splitter Function Index
Parameter | Level | Unit | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
Operating Wavelength Range | nm | 1260~1650 | |||||
Insertion Loss | P | dB | 3.9 | 7 | 10.2 | 13.5 | 17 |
S | 4.1 | 7.2 | 10.5 | 14 | 17.5 | ||
Polarization dependent Loss | P | dB | 0.2 | 0.2 | 0.2 | 0.25 | 0.25 |
S | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 | ||
Uniformity | P | dB | 0.9 | 1 | 1 | 1.5 | 1.5 |
S | 1 | 1.2 | 1.2 | 1.8 | 1.8 | ||
Return Loss | dB | 55 | |||||
Directionality | dB | 55 | |||||
Working Temperature | ℃ | -40~+85 | |||||
Storage Temperature | ℃ | -40~+85 | |||||
PDL Value1310nm&1550nm S-Standard P-Plus | |||||||
