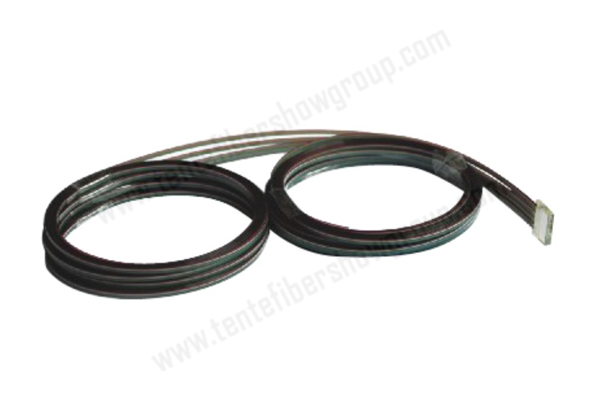

Fiber Array



42 光纤阵列 FA Pig 副本.jpg



Product Overview

N Channel(N=1,2,4,8,16,32,40,48,64, can be customized) Fiber Array can be combined with PLC chip or other optical components to achieve uniform spectral on the basis of heat-resistant glass and quartz, silicon-based technology , providing superior optical performance, high stability and reliability to meet the needs of a variety of applications.



Product Features 42 -1 光纤阵列 FA Pig.jpg

Precise fiber positioning

Low Insertion Loss

High Return Loss

Excellent reliability

Polished interface angle direction can be customized

Heat-resistant glass, quartz or a silicon V-groove

ROHS compliant



Product Function

FTTH

PLC devices( Splitter, WDM, DWDM)

Miniaturized fiber optic components

PLC Pigtail

Micro-electromechanical systems



Application of optical devices





Optical Specifications


  Parameter


  Unit

  Description


  Material   (v-groove / Cover)


  Quartz 、Pyrex Silicon /Pyrex（Quartz）



  Number of   channels

ch

1，2，4，8，16，32，40，48，64



  Fiber Center   Spacing (standard)

um

2ch,4ch：250±0.5  8ch，16ch,32ch：127±0.5  40ch,48ch,64ch：127±0.7



  Fiber Center   Spacing (standard)

dB

0.15



  Insertion Loss   Uniformity

dB

0.1



  Maximum   Polarization Loss

dB

0.05



  Return Loss

dB

＞55



  V-groove   Thickness (Pyrex v-groove / Silicon V-groove)

mm

1.5/1.0（±0.05）



  Cover Thickness   (Quartz V-groove / Silicon V-groove)

mm

1.0/1.5（±0.05）



  Grinding  Angle


8°（±0.3°）



  Working   Temperature

℃

-40～+85



 Storage Humidity

℃

-40～+85



  Fiber Type


Pure Access



  Polishing Plane

nm

≤five   stripes（633nm)


  Fiber (Ribbon)   Length

mm

2.000(+500/-0)customized






Specifications and dimensions(Silicon V-groove)

 Channel

 Fiber

   (um）
  Center Spacing

（mm)
  Width

  （mm)
  Length1

  （mm)
  Height

   (mm)
  Length2

  Fiber Ribbon   Color

1

（250um)Single   fiber

/

2.5

8

2.5

4.2

 blue or colorless

2

2 single fiber (input)

250

2.5

8

2.5

3.7

blue or colorless

2 single fiber   (output)

250

2.5

8

2.5

3.7

blue or white

4

A four-channel   fiber ribbon

250

2.5

9.8

2.5

4.5

blue, orange, green, brown

8

An 8-channel   optical fiber ribbon

250

3.2

8

2.5

4.2

blue, orange, green, brown, gray, white,   red, black

Two four-channel   fiber ribbon

127

2.8

9.8

2.5

4.2

2 × (blue, orange, green, brown)

16

Two 8-channel   optical fiber ribbon brown ,gray,  red   ,black)

127

3.2

11.8

2.5

5.2

2 × (blue, orange, green,

32

Four 8-channel   fiber with

127

5.7

11.8

2.5

5.2

4 × (blue ,orange, green ,brown ,gray   ,red, black)



Specifications and dimensions( Pyrex v-groove /Quartz V-groove)

Channel


   Fiber

 （um）
  Center Spacing

（mm)

 Width

（mm)

Length1

（mm)

Height

 (mm)

 Length2


   Fiber Ribbon   Color

1

（250um)   Single fiber   blue or colorless

/

2.5

7.8

2.5

4.5

 blue or colorless

2

   2 single fiber   (output)

250

2.5

10

2.5

4.5

blue or white

   2 single fiber   (output)

252

2.5

10

2.5

4.5

blue or white

4

  A four-channel   fiber ribbon

250

2.5

10

2.5

4.5

blue, orange, green, brown

8

An 8-channel   optical fiber ribbon

250

3.5

10

2.5

4.5

blue, orange, green, brown, gray, white,   red, black


Two four-channel   fiber ribbon

127

2.5

12

2.5

4.5

2 × (blue, orange, green, brown)

16

Two 8-channel   optical fiber ribbon

127

3.5

12

2.5

4.5

 2 × (blue, orange, green, brown   ,gray,white，    red ,black)

32

 Four 8-channel   fiber  ribbon

127

5.5

12

2.5

4.5

 4 × (blue ,orange, green ,brown ,gray   white,red, black)

40

Five 8-channel   fiber ribbon

127

9

12

2.5

4.5

5 × (blue ,orange, green ,brown ,gray   ,white，red, black)

48

Six 8-channel   fiber ribbon

127

9

12

2.5

4.5

 4× (blue   ,orange, green ,brown ,gray ,white，red,   black,yellow, purple, pink， light green)

64

eight 8-channel   fiber ribbon

127

11

12

2.5

4.5

8× (blue ,orange, green ,brown ,gray ,white，red, black)
