Main Features
5 inches high Resolution colorful LCD display, image can be turned according to position.
Average splice time: 10 second

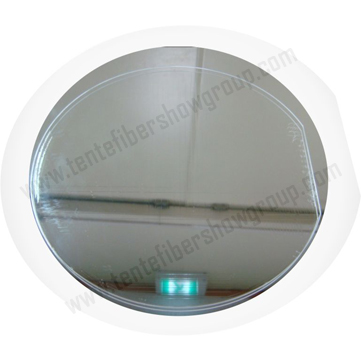

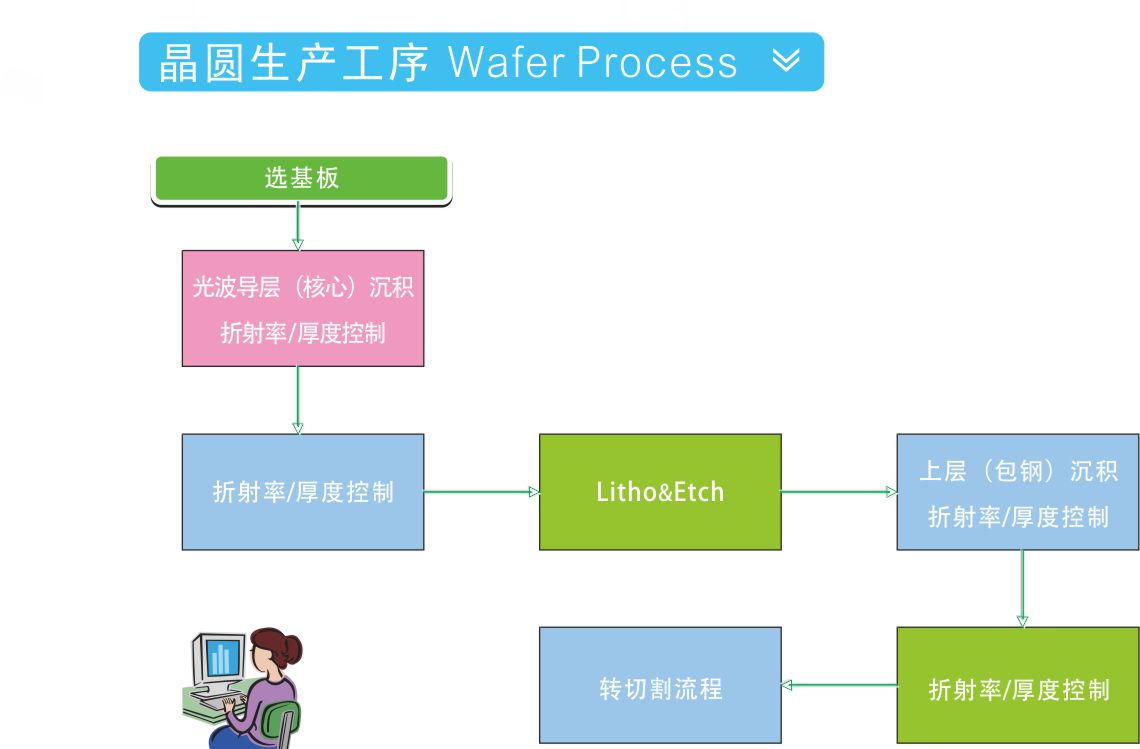

PLC Wafer
ITEM | Pitch | Commodity & Des | ||||||
Dimensions(mm) | Effective figures | Premium Grade Chip | ||||||
Yieid (%) | Effective figures | Optical Specifications | ||||||
1×2 Channel | Full (250um) | W(±0.2) L(±0.5) | 1.80 | 800 | 90% | 720 | I.L | 3.5dB |
1×4 Channel | Full (250um) | W(±0.2) | 2.30 | 580 | 90% | 522 | I.L | 6.7dB |
1×8 Channel | Full (250um) | W(±0.2) | 2.30 | 450 | 90% | 405 | I.L | 9.8dB |
1×8 Channel | Half (127um) | W(±0.2) | 2.30 | 570 | 90% | 513 | I.L | 9.8dB |
1×16 Channel | Half (127um) | W(±0.2) | 2.60 | 330 | 85% | 280 | I.L | 13.0dB |
1×32 Channel | Half (127um) | W(±0.2) | 4.50 | 150 | 80% | 120 | I.L | 16.2dB |
1×64 Channel | Half (127um) | W(±0.2) | 9.30 | 49 | 75% | 37 | I.L | 19.5dB |
2×16 Channel PLC Splitter Wafer | Half (127um) | W(±0.2) | 2.60 | 230 | 75% | 172 | I.L | 13.5dB |
2×32 Channel PLC Splitter Wafer | Half (127um) | W(±0.2) | 4.50 | 110 | 75% | 82 | I.L | 17.0dB |

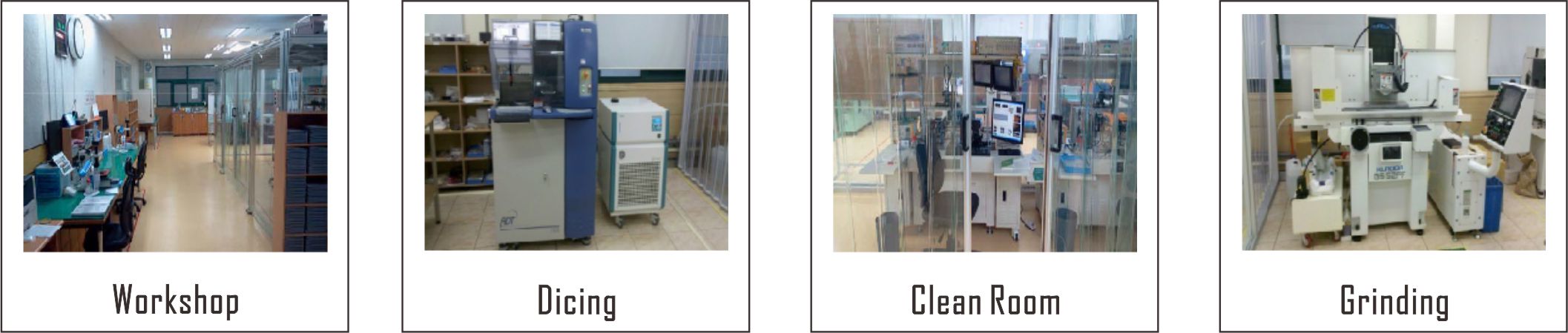

Equipment

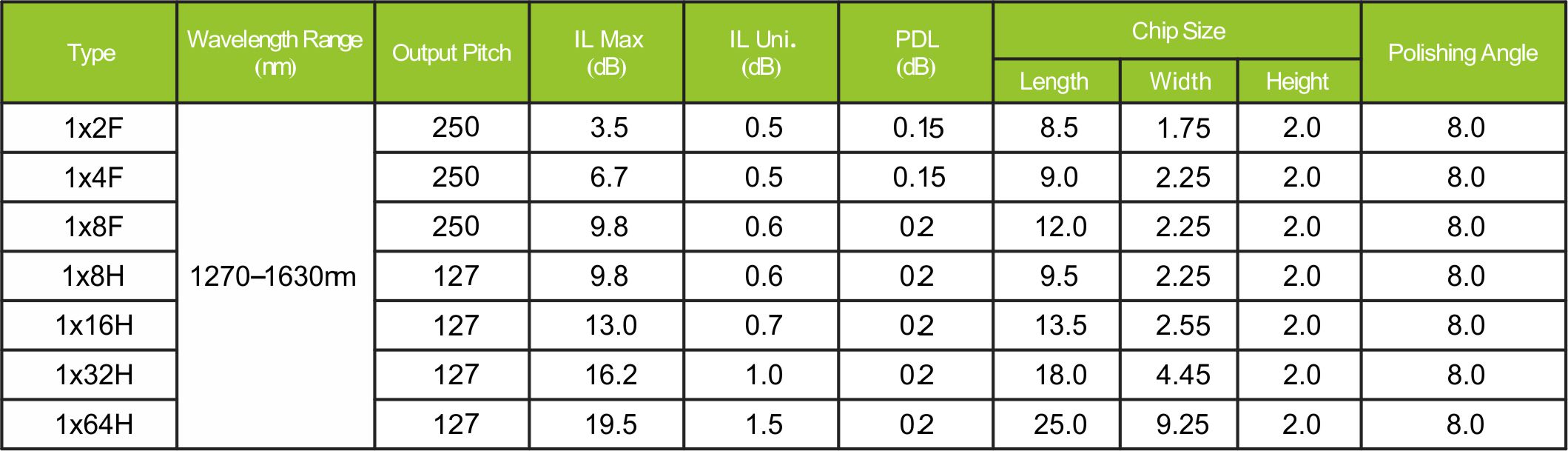

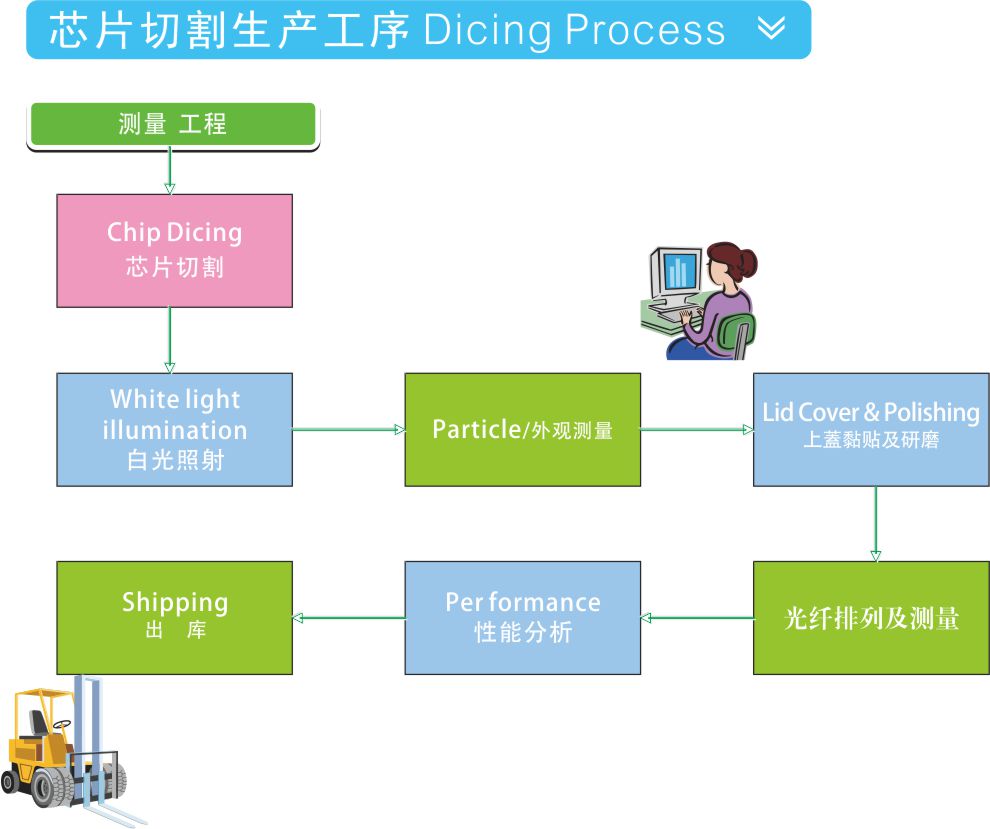

1xn PLC Splitter Chip
Specifications:

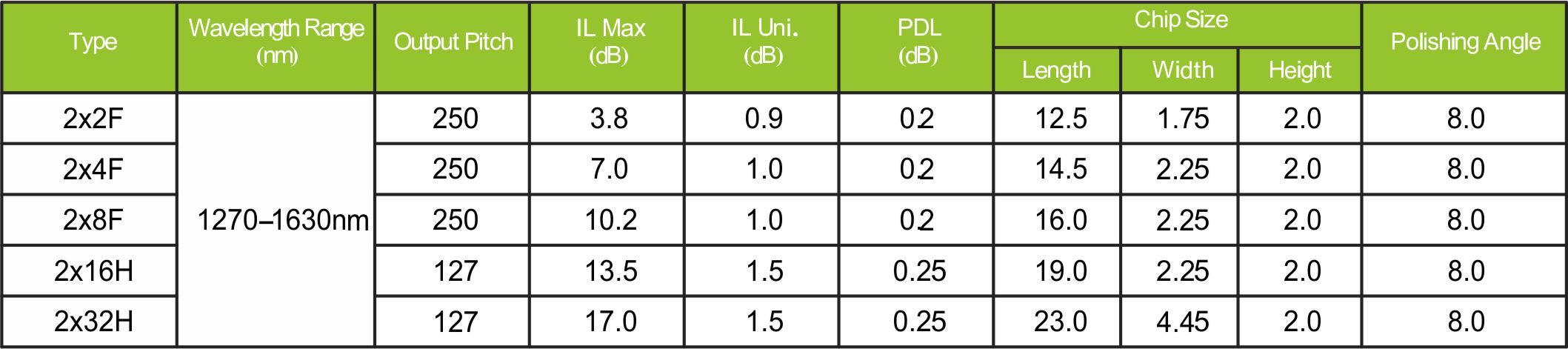

2xn PLC Splitter Chip
Specifications:

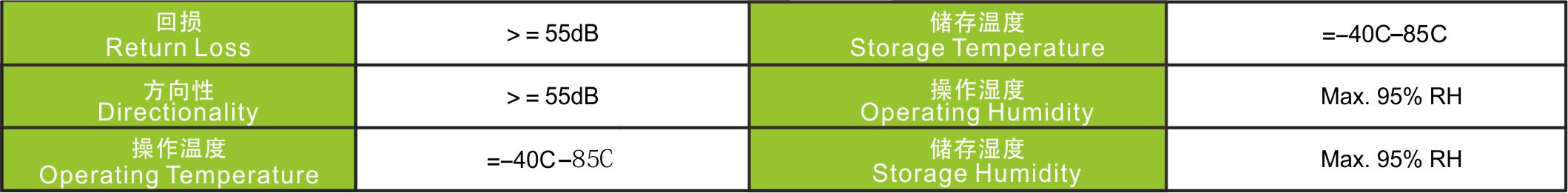

PLC Splitter Chip Properties
Specifications:

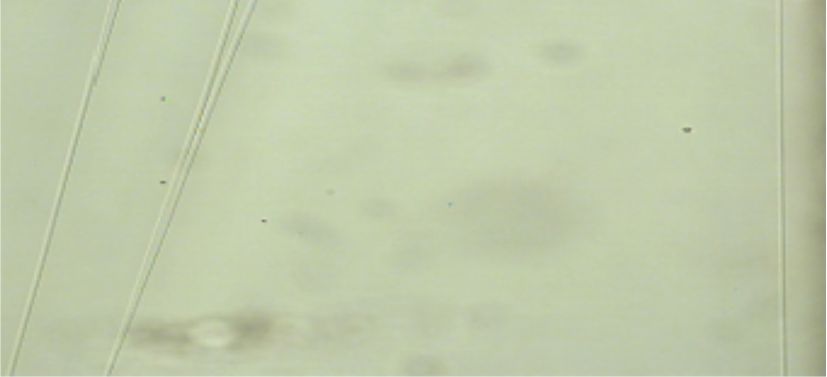

Chip PCT Testing
PCT(Pressure Cooker Test) adopts the industry's most stringent test conditions to ensure the stability of the chip manufacturing process of gluing. Conditions are as followed:
Humidity :100%
Temperature:120℃
Pressure:0.11MPa
Time:99 hours
Oven:100℃ 1 hour
Pre-treatment: No
UV Curing 10 minute
Epoxy Amount: 0.7g
