Self-supporting Drop Cable

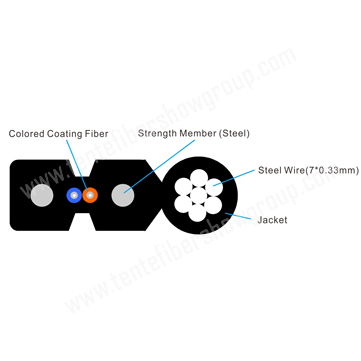

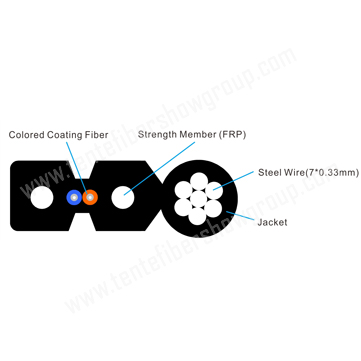

Profile View

S-GJYXCH-2B6a1

S-GJYXFCH-2B6a1

S-GJYKFCH-2B6a1

H denotes to LSZH Sheath

2B denotes to no. of fibers 2

A1 denotes to Fiber Type G.657A1

1) Strengthening Messenger Wire

Amount                    2 PCS

Material                   Phosphated steel wire

Diameter                 0.45±0.10 mm

2) Strengthened Messenger Wire

Amount                    1 PCS

Material                   Phosphated steel wire

Diameter                 Φ1.00mm

Tensile strength     1770MPa

3)Outer sheath

Material                   LSZH - Low smoke zero halogen

Color                        Black

Diameter                 2.0 H × 5.0 W ± 0.1 mm

Marking                   As per Customer Request

4)Sheath printing

FTTH;GJYXCH;2CORE;G.657A;

0000M...0001M…1000M

(◆ Represents a space .Bigger meter number in outside end )

Referred standard

ITU/T G.657A

IEC 60332-1

IEC 61034-2

ISO/IEC 11801 Generic cabling for customer premises

IEC 60754-1 and 2

YD/T 1997-2009

Characteristics of fiber

Tensile properties

Environmental conditions
