Self-supporting Figure 8 Tight-buffered Cable

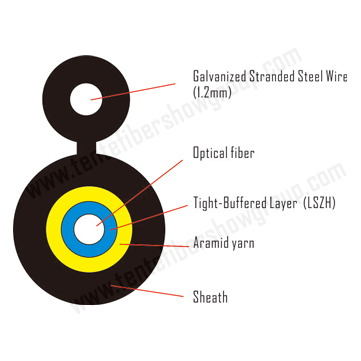

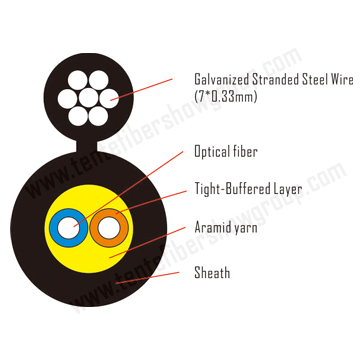

Profile View

Application

Used as drop cable for FTTX;

Features

Self-supporting; Excellent mechanical properties;

Suitable for indoor and outdoor environment;

Excellent flame-retardant performance.

Options

Fiber Type: G.652B/D,G.657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;

Sheath Material: Environmentally-friendly flame-retardant polyvinyl chloride(PVC), Low-amoke halogen flame-retardant polyolefin (LSZH), or other materials on request;

Sheath Color: (lncluding the fiber color) comply with relevant standards, or other color on request;

Cable Dimension: The nominal cable dimension, or other dimension on request;

Delivery Length: 300m, 500m, 1000m or 2000m, or other length on request;

Other Requirements: Other special product solutions are available on request;
