Description:

Stranded Loose Tube Armored Cable（GYTA53）

Details:

Stranded Loose Tube Armored Cable（GYTA53）

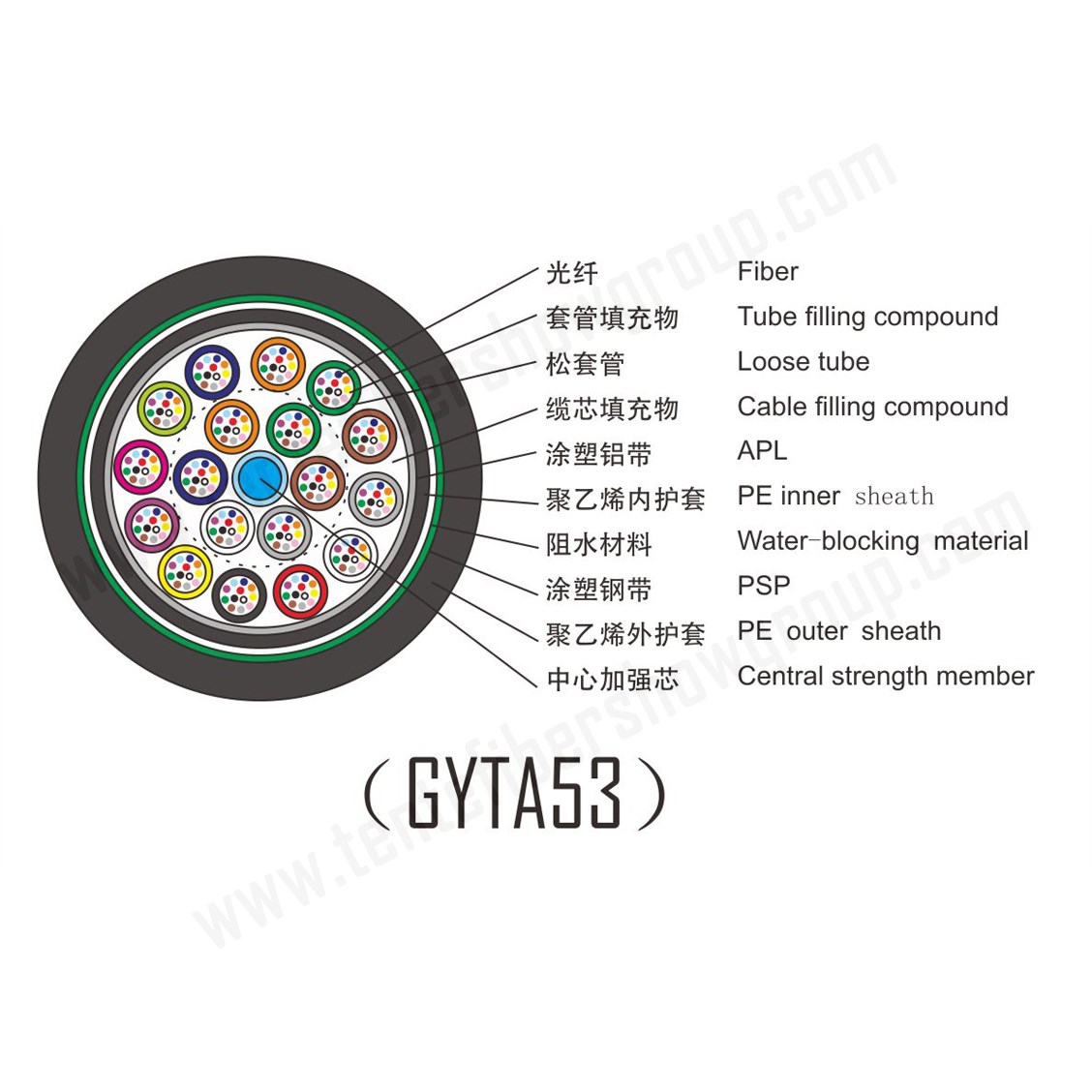

3-2 （GYTA53） 副本.jpg

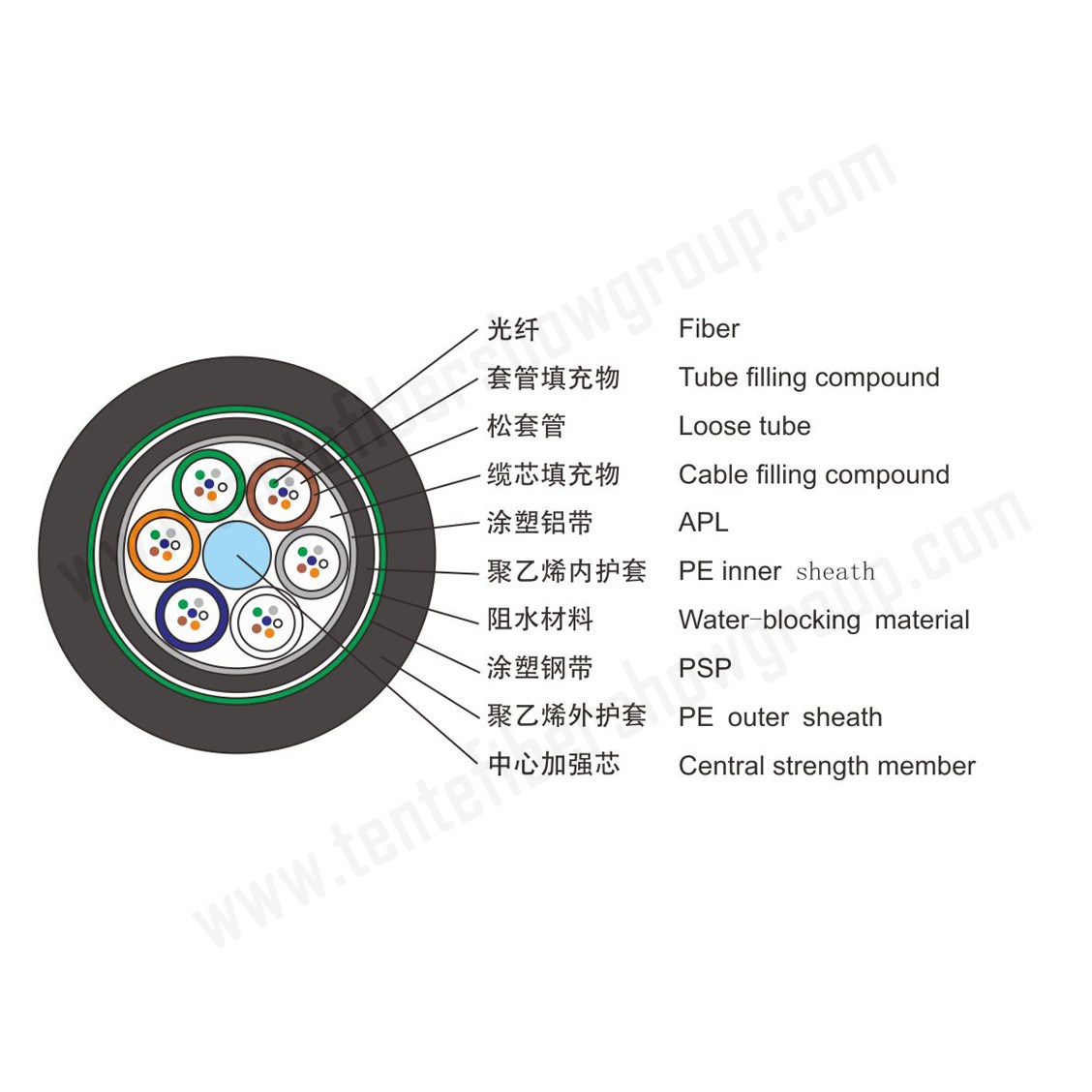

3-3 （GYTA53） 副本.jpg

 Description

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

APL moisture barrier

PSP enhancing moisture-proof

Water-blocking material



Standards

GYTA53 cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

Application: Duct/ Aerial/Direct buried


Optical Characteristics



G.652

G.655

50/125 µm

62.5/125 µm

Attenuation（+20℃）

@ 850 nm



≤ 3.0 dB/km

≤ 3.0 dB/km

@1300 nm



≤ 1.0 dB/km

≤ 1.0 dB/km

@1310 nm

≤ 0.36 dB/km

≤ 0.40 dB/km



@1550 nm

≤ 0.22 dB/km

≤ 0.23 dB/km



Bandwidth（Class A）

@ 850 nm



≥ 500 MHz·km

≥ 200 MHz·km

@1300 nm



≥ 1000 MHz·km

≥ 600 MHz·km

Numerical Aperture



0.200 ± 0.015 NA

0.275 ± 0.015 NA

Cable Cut-off Wavelength lcc

≤ 1260 nm

≤ 1450 nm





Technical Parameters

Cable Type
 (Increased by 2   fibers)

Fiber Count

Tubes

Fillers

Cable Diameter
  mm

Cable Weight
  kg/km

Tensile Strength
Long/Short Term
  N

Crush Resistance
Long/Short Term
  N/100mm

Bending Radius
Static/Dynamic
  mm

GYTA53-2~6Xn

2~6

1

5

13.7

190

1000/3000

1000/3000

10D/20D

GYTA53-8~12Xn

8~12

2

4

13.7

190

1000/3000

1000/3000

10D/20D

GYTA53-14~18Xn

14~18

3

3

13.7

190

1000/3000

1000/3000

10D/20D

GYTA53-20~24Xn

20~24

4

2

13.7

190

1000/3000

1000/3000

10D/20D

GYTA53-26~30Xn

26~30

5

1

13.7

190

1000/3000

1000/3000

10D/20D

GYTA53-32~36Xn

32~36

6

0

13.7

190

1000/3000

1000/3000

10D/20D

GYTA53-38~48Xn

38~48

4

1

15.3

229

1000/3000

1000/3000

10D/20D

GYTA53-50~60Xn

50~60

5

0

15.3

229

1000/3000

1000/3000

10D/20D

GYTA53-62~72Xn

62~72

6

0

15.9

244

1000/3000

1000/3000

10D/20D

GYTA53-74~84Xn

74~84

7

1

18

288

1000/3000

1000/3000

10D/20D

GYTA53-86~96Xn

86~96

8

0

18

288

1000/3000

1000/3000

10D/20D

GYTA53-98~108Xn

98~108

9

1

19..2

325

1000/3000

1000/3000

10D/20D

GYTA53-110~120Xn

110~120

10

0

19.2

325

1000/3000

1000/3000

10D/20D

GYTA53-122~132Xn

122~132

11

1

21.3

373

1000/3000

1000/3000

10D/20D

GYTA53-134~144Xn

134~144

12

0

21.3

373

1000/3000

1000/3000

10D/20D

GYTA53-146~216Xn

146~216

18

0

21.3

373

1000/3000

1000/3000

10D/20D

 Note：Storage/Operating Temperature: -40℃ to +70℃

Note：

a. Suffix Xn denotes fiber type .

b. The colour arrangements of fiber and tube are specified in the colour identification table.

c. The nominal value of the PE outer sheath thickness is 1.8mm while the nominal value of the PE inner sheath thickness is 0.9mm.
